Anchor Fluid Power 12SFO SAE J518 / ISO 6162 Split Flange Kit

Product Description

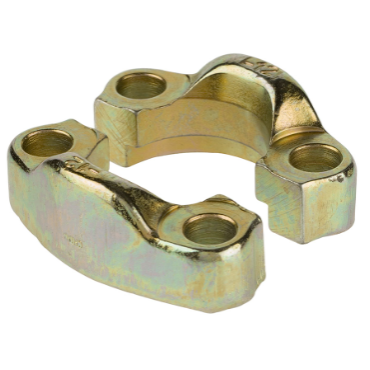

The Anchor Fluid Power 12SFO is a complete SAE J518 / ISO 6162 Split Flange Kit. This kit is designed for tube and hose end connections.

• Kits include two flange halves, a bolt kit, and a Buna o-ring.
• Forged from carbon steel for durability.
• Features a high corrosion-resistant silver trivalent finish.

Product Highlights

This kit provides reliable connections in hydraulic applications, suitable for use in various fluid systems.

Product Information

Standard Information

• Brand: Anchor Fluid Power
• Part Number: 101751128

Technical Specifications

• Pressure Code Rating: Code 61
• Bolt Hole Size: 0.406 inches
• O-Ring Size: 214
• Tube Diameter: 1.27 inches
• Component: Kit with 2 Split Flanges & Hardware
• Flange Diameter: 1.53 inches
• Overall Thickness: 0.88 inches
• Bolt Centers: 1.88 inches
• Length: 2.560 inches
• Material: Carbon Steel
• Thickness: 0.56 inches
• Weight: 0.64 pounds
