Anaconda 38312 Thermoplastic PVC Jacket 1/2 inches MTC Black 100 ft carton

Product Description

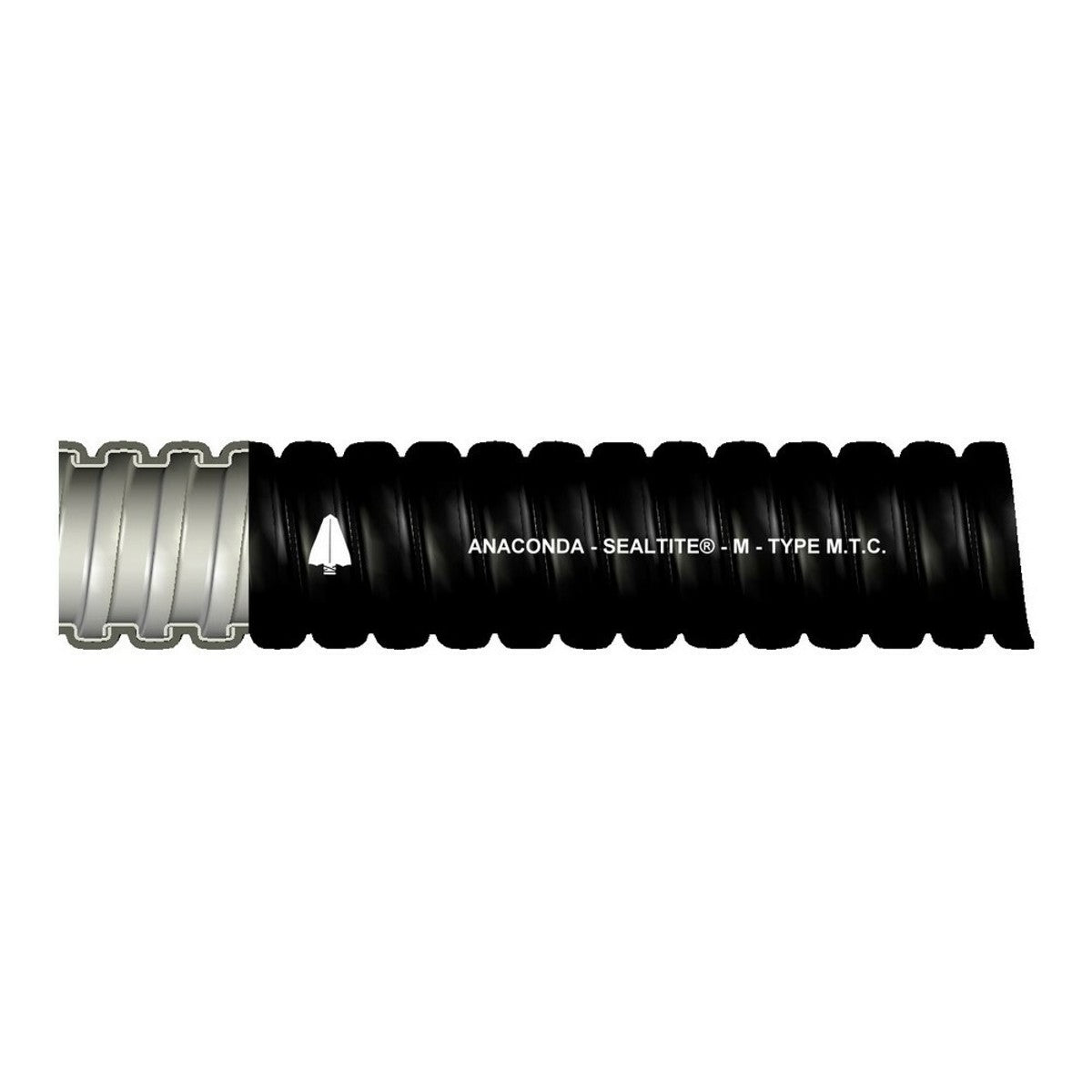

The ANACONDA 38312 is a thermoplastic PVC jacketed liquid-tight flexible metal conduit. This 1/2" MTC conduit comes in a 100 ft carton. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core, it offers crush and corrosion resistance. Designed for machine centers and robotics, it provides a flexible, liquid-tight raceway for wiring.

• Liquidtight and flexible
• Crush, heat, oil, chemical, and sunlight resistant
• Constructed of continuously interlocked hot dipped zinc galvanized steel core

Product Highlights

Ideal for use in machine centers and robotics, this conduit provides superior wiring protection where agency approvals are not required.

Product Information

Standard Information

• Brand: ANACONDA
• Manufacturer Part Number: 38312
• Country of Origin: United States

Technical Specifications

• Catalog Number: 38312
• Manufacturer: Anamet
• Brand: Anaconda
• Sub Brand: Sealtite
• Country of Origin: United States
• Made in USA: Yes
• Application: Machine Centers and Robotics
• UPC: 714118383121
• GTIN: 00714118383121
• Item Type: Liquid-tight flexible metal conduit
• Type: MTC
• Style: MTC
• Trade Size: 1/2 Inch
• Constructional Feature: Crush, Heat, Oil, Chemical, Sunlight Resistant
• Length: 100 Ft
• Bending Radius: 2 Inch
• Inner Diameter: 0.62 to 0.64 Inch
• Outside Diameter: 0.818 to 0.843 in
• Temperature Rating: -4 to 140 Deg F
• Core Material: Steel
• Finish: Galvanized
• Jacket Material: Thermoplastic PVC
• Jacket Color: Black
• Standard Package: Carton
• RoHS Compliant: True
• Electrical Trade Size: 1/2 in
• Packaging: Standard Carton
• Inside Diameter: 0.620 to 0.640 in
• Approx. Inside Bend Radius: 2.0 in
• Approx. Weight per 100 ft: 20 lbs
• Industry Certifications: RoHS WEEE
• EU RoHS Indicator: Y
• Material: Steel/Thermoplastic PVC
• Series: Type MTC Series
• IP Rating: IP65
