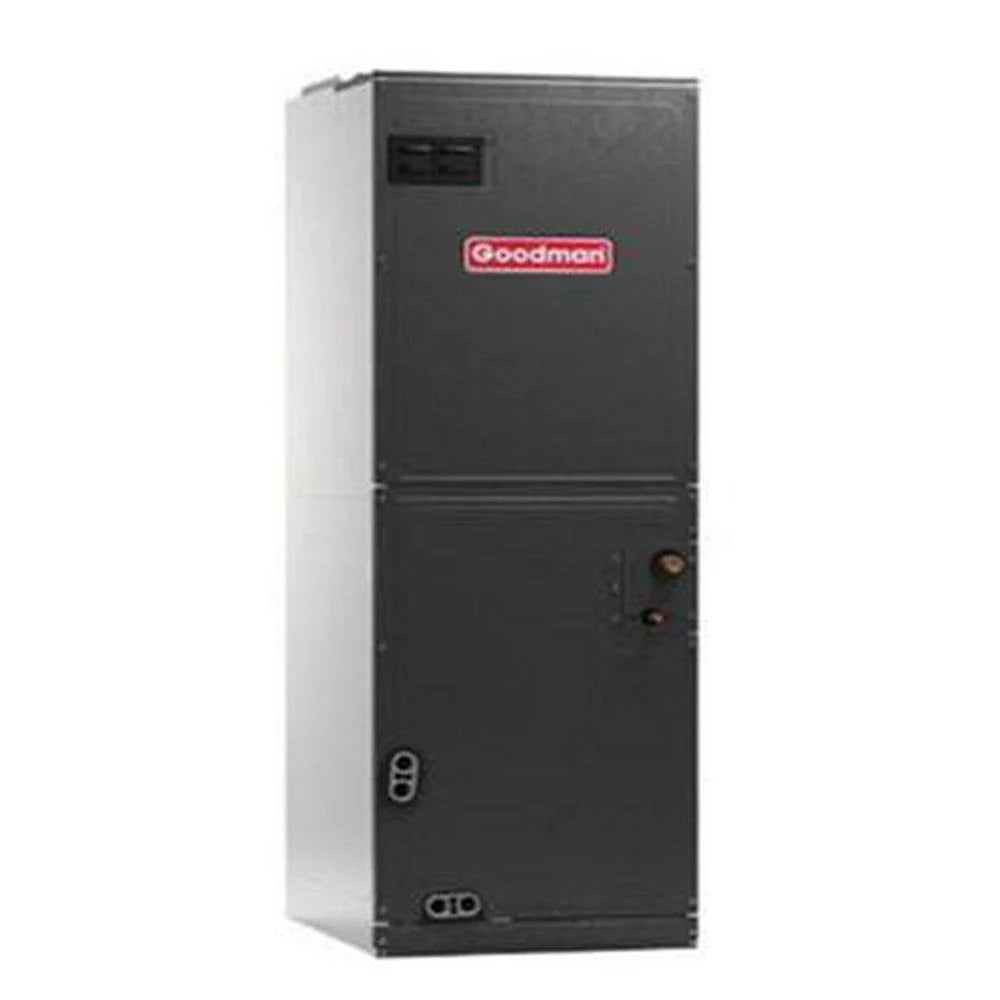

Goodman AMVT24BP1400 AMVT Series 2 Ton Variable Speed Air Handler

Product Description

The Goodman AMVT24BP1400 is a two-ton variable speed air handler designed for residential use. This unit supports both cooling and heat pump applications. It comes equipped with internal factory-installed thermal expansion valves to optimize performance during operation. The variable-speed ECM blower motor ensures efficient airflow, adapting to diverse heating and cooling needs.

• Integrated ComfortBridge technology for communication with other HVAC components
• Bluetooth capability for commissioning and diagnostics
• Multi-position installation flexibility for various configurations

Product Highlights

This air handler offers enhanced humidity control and constant airflow across a range of static pressure conditions. It is compatible with multi-stage heat pumps and cooling systems, making it versatile for different setups.

Product Information

Standard Information

• Brand: Goodman
• MPN: AMVT24BP1400

Technical Specifications

• Weight: 117 lbs
• Cooling Capacity: 24000 BTU
• Max Airflow: 800 CFM
• Min Airflow: 402 CFM
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
• Voltage: 208/240V
• Shipping Dimensions: 49 x 24.5 x 18.5 inches
