Product Description

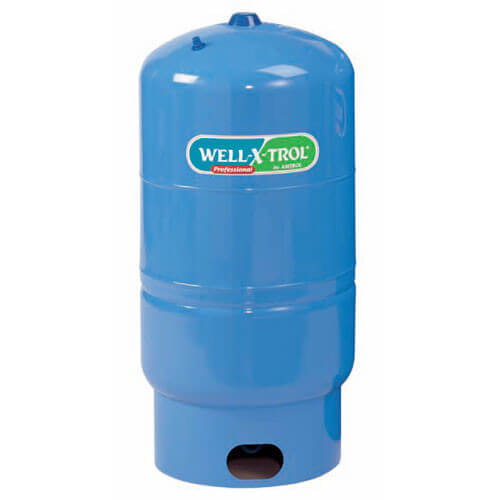

The Amtrol WX-202D is a twenty-gallon well water system pressure tank designed for reliable water supply management. This tank is built for durability and efficiency, featuring a DuraBase stand for enhanced support. The WX-202D operates with a pre-charge pressure of thirty-eight psi and a maximum working pressure of one hundred fifty psi. The heavy-duty butyl diaphragm is designed to maintain air pressure effectively and prevent bacterial growth.
- Heavy-duty butyl diaphragm ensures longevity and resistance to bacterial growth.
- 100% corrosion-proof polypropylene liner meets NSF International Standards.
- Built with a welded air valve for durability and reduced risk of air loss.
Product Highlights
This tank is ideal for residential and light commercial applications, ensuring effective water pressure management.
Product Information
Standard Information
-
Brand: Amtrol
-
Part Number: AMTR-WX202D
Technical Specifications
-
Tank Capacity: 5 - 20 Gallons
-
Max Pressure: 150 PSI
-
Connection Size: 1 inch
-
Weight: 33 lbs
-
Height: 31-5/8 inches
-
Diameter: 15-3/8 inches
-
Shipping Dimensions: 32 x 15 x 15 inches
-
Warranty: 7 Year Limited
