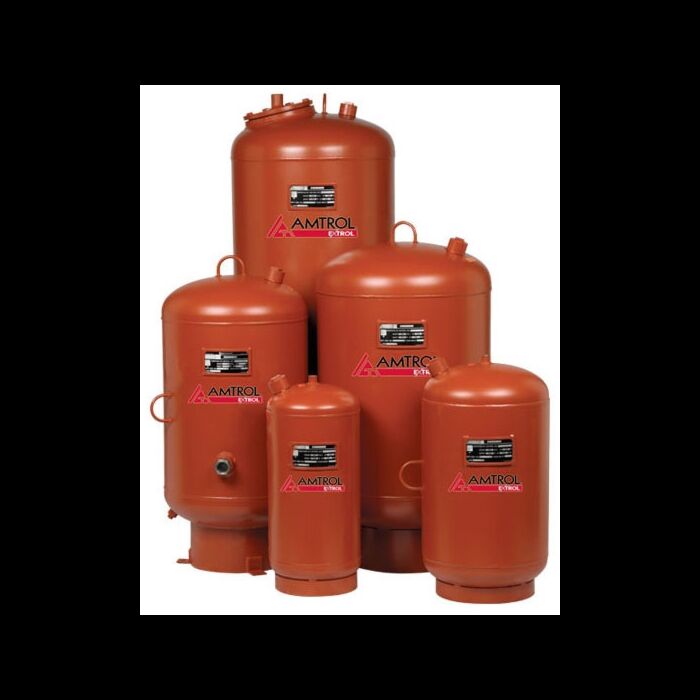

AMTROL-WORTHINGTON SX-30V Extrol Hydronic Expansion Tank

Product Description

The AMTROL-WORTHINGTON SX-30V Extrol is a fourteen-gallon hydronic expansion tank intended for closed, non-potable hydronic heating, radiant, and chilled water systems. It accommodates expanded water as the system temperature increases, helping to maintain safe pressure levels. The tank is constructed with a heavy-duty butyl and EPDM diaphragm, and features a urethane topcoated deep drawn steel tank material. This unit comes factory pre-charged and includes a projection-welded air valve and a threaded steel system connection.

• 1 inch NPTF threaded inlet and outlet connection
• Maximum working pressure of one hundred PSIG
• Maximum operating temperature of two hundred forty degrees Fahrenheit

Product Highlights

This expansion tank is designed for various hydronic applications, including heating and cooling systems. It helps to reduce pressure buildup and ensures system efficiency.

Product Information

Standard Information

• Brand: AMTROL-WORTHINGTON
• Manufacturer Part Number: SX-30V

Technical Specifications

• Application: Closed Hydronic Heating, Radiant and Chilled Water Systems
• Tank Capacity: 14 Gallon
• Inlet/Outlet Connection: 1 Inch NPTF Threaded
• Maximum Pressure: 100 PSIG
• Precharge Pressure: 12 PSIG
• Maximum Temperature: 240 Degrees F
• Diaphragm Material: Butyl/EPDM
• Tank Material: Urethane Topcoated Deep Drawn Steel
• Mounting Type: Vertical, Stand
• Height: 25 Inch
• Diameter: 15 Inch
• Certifications: ISO 9001
• Standard: Non-ASME
