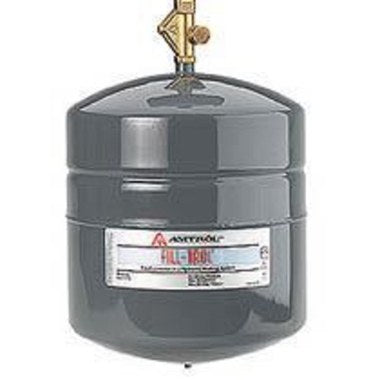

AMTROL-WORTHINGTON 110 Fill-Trol Expansion Tank

Product Description

The AMTROL-WORTHINGTON Fill-Trol Expansion Tank, MPN 110, is designed to integrate a pre-pressurized, diaphragm-type expansion tank with a fill valve. This system is ideal for managing pressure in closed-loop hydronic systems used in heating and cooling.

• Accepts expanded water to reduce pressure build-up.
• Eliminates the need for a separate fill valve.
• Features an automatic air vent and air purger.

Product Highlights

This system is essential for closed hydronic heating and chilled water systems. Its steel construction ensures durability, while the factory precharge of twelve PSIG aids in efficient operation.

Product Information

Standard Information

• Brand: Amtrol-Worthington
• Product Type: Automatic Fill

Technical Specifications

• Tank Capacity: 62 gallons
• Pressure: 100 PSIG
• Inlet/Outlet Connection: 1-1/4 inches FNPT
• Connection Type: NPTF
• Temperature: 240 degrees F
• Application: Closed Loop Hydronic Heating and Radiant Heating Applications
• Material: Steel
• Weight: 25 lbs
• Dimensions: 47 inches height x 22 inches diameter
• Finish: Urethane Topcoat
