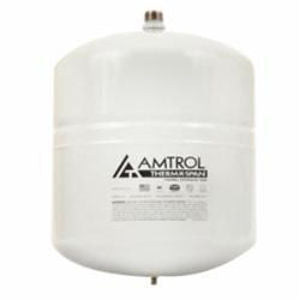

Amtrol T-12 Therm-X-Span In-Line Thermal Water Heater Expansion Tank 4.4 Gallon 150 psi

Product Description

The Amtrol T-12 is an expansion tank designed for in-line installation. It features a nominal capacity of four point four gallons. This unit manages thermal expansion in water heating systems. Its working pressure is rated at one hundred fifty psi, making it suitable for a variety of applications. Use it with water heaters that hold up to one hundred gallons.

• Accepts expanded water caused by thermal expansion.
• Returns water to the system when hot water is used.
• Prevents dripping faucets and pressure relief valve discharge.

Product Highlights

Designed to help manage water pressure and prevent build-up in plumbing systems, this tank is required by many building codes.

Product Information

Standard Information

• Brand: Amtrol
• MPN: T-12

Technical Specifications

• Nominal Capacity: 4.4 gallons
• Precharge Pressure: 40 psi
• Maximum Working Pressure: 150 psi (10.5 bar)
• Maximum Operating Temperature: 200°F
• System Connection: 3/4 inch male NPT
• Diaphragm Type: Butyl/EPDM
• Material: Stainless Steel
• Dimensions: 11 inches diameter x 15 inches height
