Amtrol ST-5C-DD 3/4 NPT Connection 0.9 Gallons Max Acceptance

Product Description

The Amtrol ST-5C-DD is an in-line thermal expansion tank designed to manage pressure in closed water systems. This tank helps control the pressure build-up that can occur in hot water systems. The tank accepts expanded water and returns it to the system when hot water is drawn. This prevents common issues such as dripping faucets, pressure relief valve discharge, and intermittent toilet filling.

• USA Made and ASME Certified for quality assurance.
• Heavy-duty design for durability and ease of installation.
• Antimicrobial protection to keep water systems clean.

Product Highlights

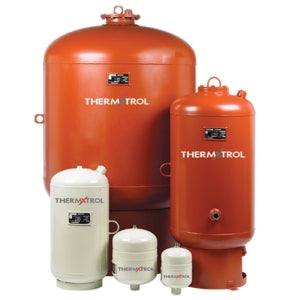

The Therm-X-Trol design offers an efficient solution for commercial applications, featuring a strong steel shell and a silver-ion antimicrobial inner lining.

Product Information

Standard Information

• Brand: Amtrol
• Model: ST-5C-DD

Technical Specifications

• Connection Size: 3/4 Inch
• Capacity: 2 Gallons
• Maximum Acceptance Volume: 0.9 Gallons
• Maximum Operating Pressure: 150 PSI
• Maximum Operating Temperature: 200 F
• Product Height: 14 Inches
• Product Diameter: 8 Inches
• Shipping Height: 14 19/48 Inches
• Shipping Width: 9 Inches
• Shipping Length: 9 5/48 Inches
