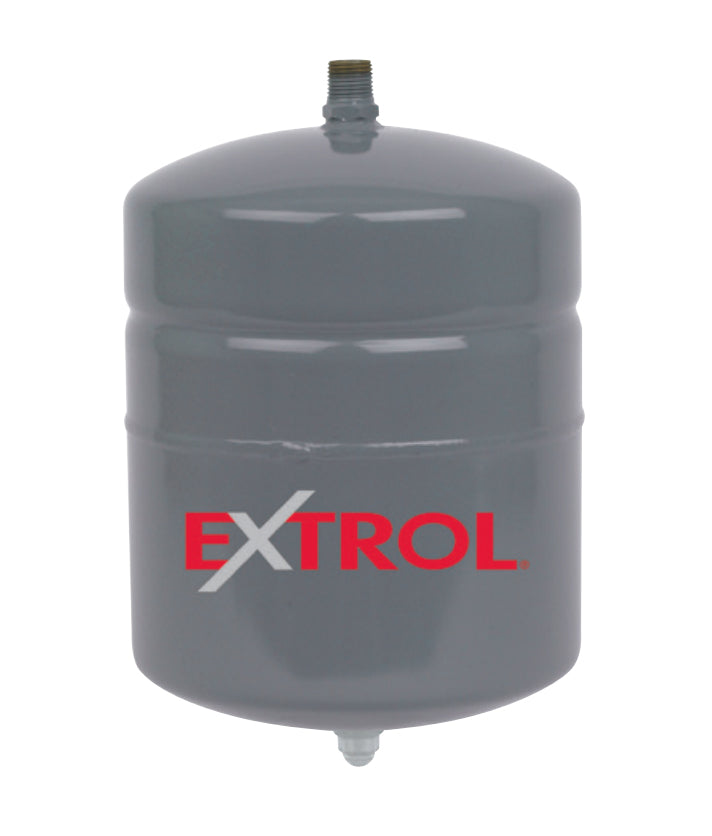

Amtrol EX-60 Expansion Tank W/ 1/2 inches NPT Connection 103-1

Product Description

The AMTROL EX-60 expansion tank with 1/2" NPT connection is designed to accept expanded water as system temperatures rise, reducing pressure build-up in closed-loop hydronic systems. It improves comfort levels and helps reduce energy costs. Ideal for residential applications with BTU outputs of 75,000 - 200,000. The tank has a heavy-duty Butyl/EPDM diaphragm for long service life.

• Made in the USA with a heavy-duty tank.
• Features a steel system connection and a projection-welded air valve.
• Suitable for use in closed, hydronic heating and chilled water systems.

Product Highlights

This expansion tank controls pressure build-up and reduces energy consumption in heating and chilled water systems.

Product Information

Standard Information

• Brand: AMTROL
• Manufacturer Part Number: EX-60
• Country of Origin: United States

Technical Specifications

• Tank Volume: 7.6 Gallons
• Factory Precharge: 12 Psi
• Max Accept Volume: 2.5 Gallons
• Working Pressure: 100 psi
• Operating Temperature: 240°F
• System Connection: Steel
• Height (In): 23
• Diameter (In): 11
• Use With: For use with closed hydronic heating and cooling systems
• Product Category: Boiler Accessories
• Product Line: Extrol
• Connection Type: MNPT
• Maximum Operating Temperature: 240 F
• Maximum Operating Pressure: 100 PSI
• Storage Volume: 7 Gallons
• Maximum Acceptance Volume: 2.5 Gallons
• Connection Size: 1/2 Inch
• Product Diameter: 11 Inches
• Product Height: 23 Inches
• Shipping Width: 11 Inches
• Shipping Height: 23 Inches
• Shipping Length: 11 Inches
• Country of Origin: United States
• Warranty: 5 Years
• Tank Water Volume: 6.7 Gallons
• System Connection Size (in.): 1/2 NPT
• Factory Pre-Charge: 12 PSIG
• Max. Working Pressure (PSIG): 100
• Max. Operating Temperature: 240º F (116º C)
• Tank Diameter (in.): 11
• Construction Shell: High Strength Steel
• Diaphragm: Heavy Duty Butyl/EPDM
• Air Stem: Projection Welded
• Application: For use in closed, hydronic heating systems to control pressure build-up. Accepts expanded water as system temperature rises and returns it to the system as the temperature drops.
• Series: EX
• Capacity: 7.6 gal
• Material: Steel
• Finish: Urethane Topcoat
• Pressure Rating: 100 psi Working, 12 psi Pre-Charge
• Temperature Rating: 240 deg F
• Model: EX-60
• Type: Boiler Expansion Tank
• MPN: 103-1
• Brand: Amtrol
• Condition: New
