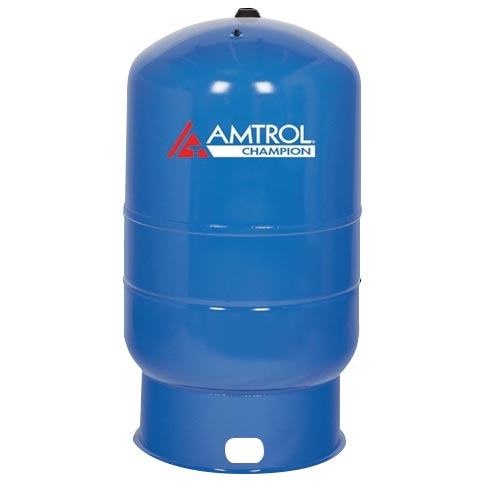

Amtrol 399336 CH17002 CH Series Vertical Diaphragm Well Tank 86 Gal Capacity Replacement MPN

Product Description

The Amtrol 399336 CH17002 is a vertical diaphragm well tank designed for residential well water systems. This tank has an 86-gallon capacity and is built with deep drawn steel for durability. It features a heavy-duty butyl/EPDM diaphragm for reliable performance and a fresh water turbulator to reduce stagnation.

• 86 gallons of water capacity
• Maximum pressure rating of 125 psi
• Features a polypropylene liner for longevity

Product Highlights

This well tank is an effective choice for controlling pump cycling in residential well systems.

Product Information

Standard Information

• Brand: Amtrol Inc
• Part Number: S0173

Technical Specifications

• Capacity: 86 gal
• Acceptance Capacity: 46.4 gal
• Acceptance Factor: 0.54
• Pressure Rating: 125 psi
• Temperature Rating: 200 deg F
• Diameter: 26 in
• Height: 47 in
• Material: Deep Drawn Steel Shell
• Diaphragm Type: Heavy Duty Butyl/EPDM
• Country of Origin: US
• Domestic/Import: Domestic
• Series: CH Series
