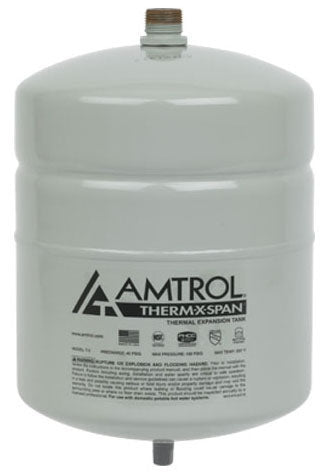

Amtrol 390654 T-12 Expansion Tank with 3/4 MIP Connection 4.4 Gallon

Product Description

The Amtrol 390654 T-12 Expansion Tank is designed for potable hot water systems. It has a three-quarter inch male threaded inlet and outlet connection. The tank is constructed from urethane top coated steel with a polypropylene inner lining, ensuring durability and reliability.

• Tank capacity of four point four gallons
• Pressure rating of one hundred fifty PSI
• Temperature rating of two hundred degrees Fahrenheit

Product Highlights

This expansion tank helps manage water pressure, protecting plumbing systems from damage.

Product Information

Standard Information

• Brand: Amtrol
• Model: T-12

Technical Specifications

• Air Charge Capacity: 40 PSI
• Diaphragm Type: Heavy Duty Butyl
• Inlet/Outlet Connection: 3/4 Inch Male Threaded
• Application: Potable Hot Water System
• Tank Dimensions: 11 Inch Diameter x 15 Inch Height
• Tank Capacity: 4.4 Gallon
• Temperature Rating: 200 Deg F
• Pressure Rating: 150 PSI
• Warranty: 1 Year
