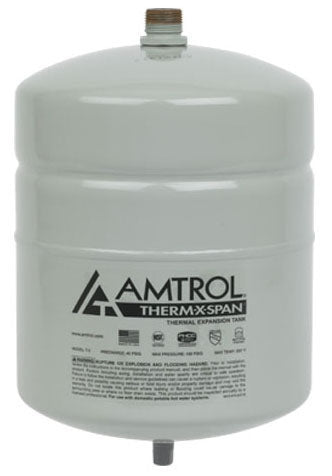

Amtrol 390517 T-5 Expansion Tank 2 Gallon

Product Description

The Amtrol 390517 is a thermal expansion tank designed for use in potable hot water systems. It features a three-quarter inch MIP connection and a two-gallon capacity. This expansion tank helps to control pressure and protects plumbing systems from excessive pressure build-up.

• Tank material: urethane top coated steel
• Temperature rating: 200 degrees Fahrenheit
• Pressure rating: 150 PSI

Product Highlights

This expansion tank is crucial for maintaining safe operation of water heating systems.

Product Information

Standard Information

• Brand: Amtrol
• Type: In-Line

Technical Specifications

• Tank Capacity: 2 gallon
• Tank Dimensions: 8 inch diameter x 13 inch height
• Tank Warranty: 1 year
• Diaphragm Type: Heavy duty butyl
• Air Charge Type: Factory pre-charged
• Air Charge Capacity: 40 PSI
• Inlet/Outlet Connection: 3/4 inch male threaded
• Applicable Standards: ISO 9001, NSF/ANSI 61
• Features: Projection welded air valve
• Lead-Free: Yes
