Amtrol 390310 EXTROL SX Series Vertical Floor-Standing Boiler System Expansion Tank 14 gal

Product Description

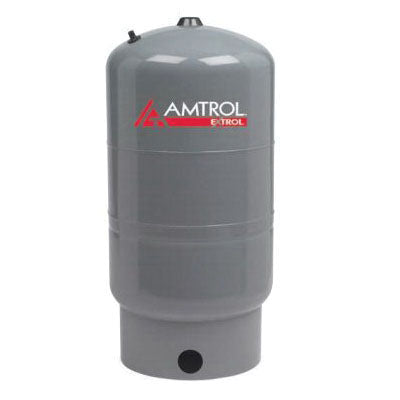

The Amtrol EXTROL 390310 is a vertical floor-standing diaphragm expansion tank. Designed for boiler systems, this unit features a 14-gallon capacity, making it suitable for various heating applications. It controls system pressure and helps lower energy consumption efficiently.

• Manufactured with heavy-duty butyl/EPDM diaphragm.
• Constructed from a robust steel shell with a urethane topcoat.
• Rated for a maximum pressure of one hundred psi.

Product Highlights

Reliable performance with a focus on quality and durability, the EXTROL expansion tank is a top choice in the industry.

Product Information

Standard Information

• Brand: Amtrol
• Type: Vertical Floor-Standing

Technical Specifications

• Acceptance Capacity: 11.3 gal
• Acceptance Factor: 0.81
• Capacity: 14 gal
• Diameter: 15 in
• Diaphragm Type: Heavy Duty Butyl/EPDM
• Domestic/Import: Domestic
• Finish: Urethane Topcoat
• Height: 24 in
• Material: Steel Shell
• Pressure Rating: 100 psi
• Series: SX Series
• Temperature Rating: 240 deg F
