Amtrol 148N118 Expansion Tank 62 Gallon Replacement MPN

Product Description

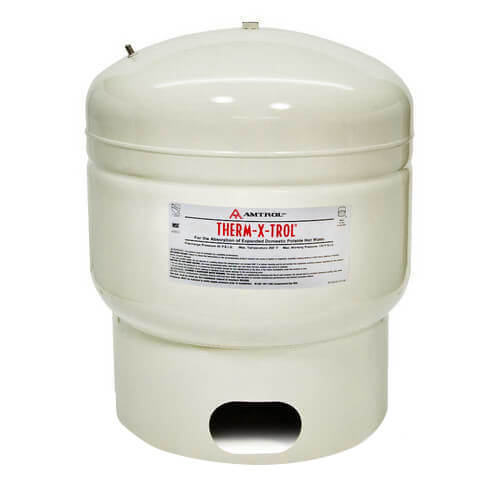

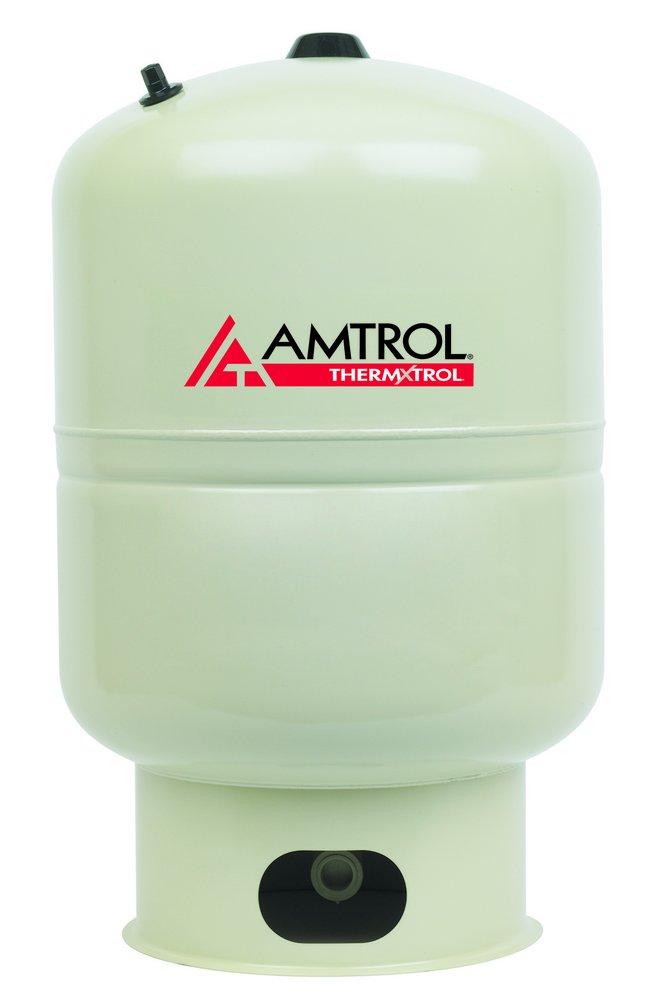

The Amtrol 148N118 is a vertical thermal expansion tank designed for use in closed, hot water systems. It is capable of holding up to sixty-two gallons of water and operates under a maximum pressure rating of one hundred fifty psi. The tank features a pre-charged air cushion, which helps maintain pressure levels below the relief valve setting, effectively preventing spillage.

• Type: Vertical, In-Line
• Temperature Rating: 200 degrees F
• Pressure Rating: 150 psi

Product Highlights

This tank is essential for controlling pressure build-up in domestic water systems. Its design includes a patented turbulator for effective water circulation and an antimicrobial liner that neutralizes bacteria.

Product Information

Standard Information

• Brand: Amtrol
• MPN: 148N118

Technical Specifications

• Tank Capacity: 62 Gallon
• Inlet/Outlet Connection: 1-1/4 Inch Female Threaded
• Tank Warranty: 5 Year
• Applicable Standards: NSF/ANSI 61, IAPMO, NAF
• Finish: Urethane Topcoat
• Diameter: 22 Inch
• Height: 47 Inch
• Material: Steel
