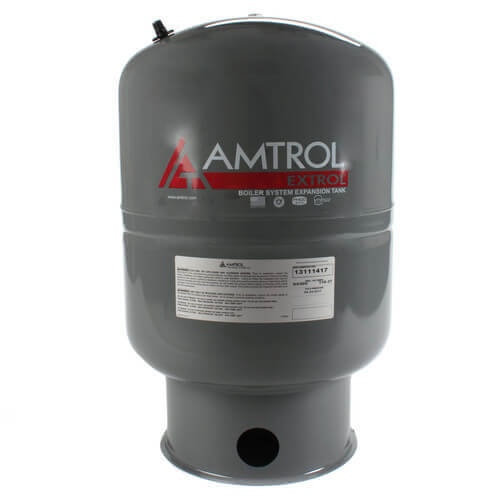

Amtrol 118-27 SX-30V Extrol 14 Gallon Expansion Tank

Product Description

The Amtrol 118-27 SX-30V Extrol is a hydronic expansion tank designed for residential and light commercial heating systems. The tank has a capacity of fourteen gallons and is built to control pressure build-up in closed loop hydronic systems. It features a urethane topcoat and a sturdy steel construction.

• Factory pre-charged to twelve pounds per square inch (psig)
• Designed for high output boilers up to one million five hundred thousand BTUs
• Floor-standing model with rugged steel base

Product Highlights

This tank improves comfort and reduces energy costs by accepting expanded fluid as system temperature rises and returning it when it cools.

Product Information

Standard Information

• Brand: Amtrol
• MPN: 118-27

Technical Specifications

• Type: Vertical
• Material: Steel
• Capacity: 14 gallons
• Connection Size: 1 inch FNPT
• Diameter: 15 inches
• Height: 25 inches
• Pressure Rating: 100 psig
• Temperature Rating: 240 degrees F
• Sub Brand: Extrol
• Series: SX
