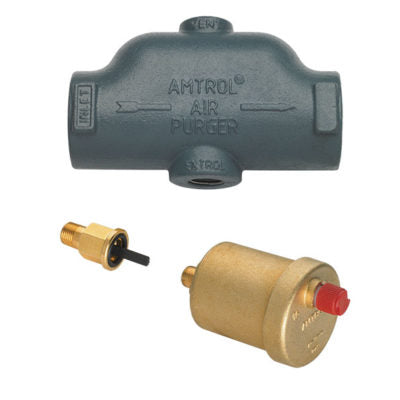

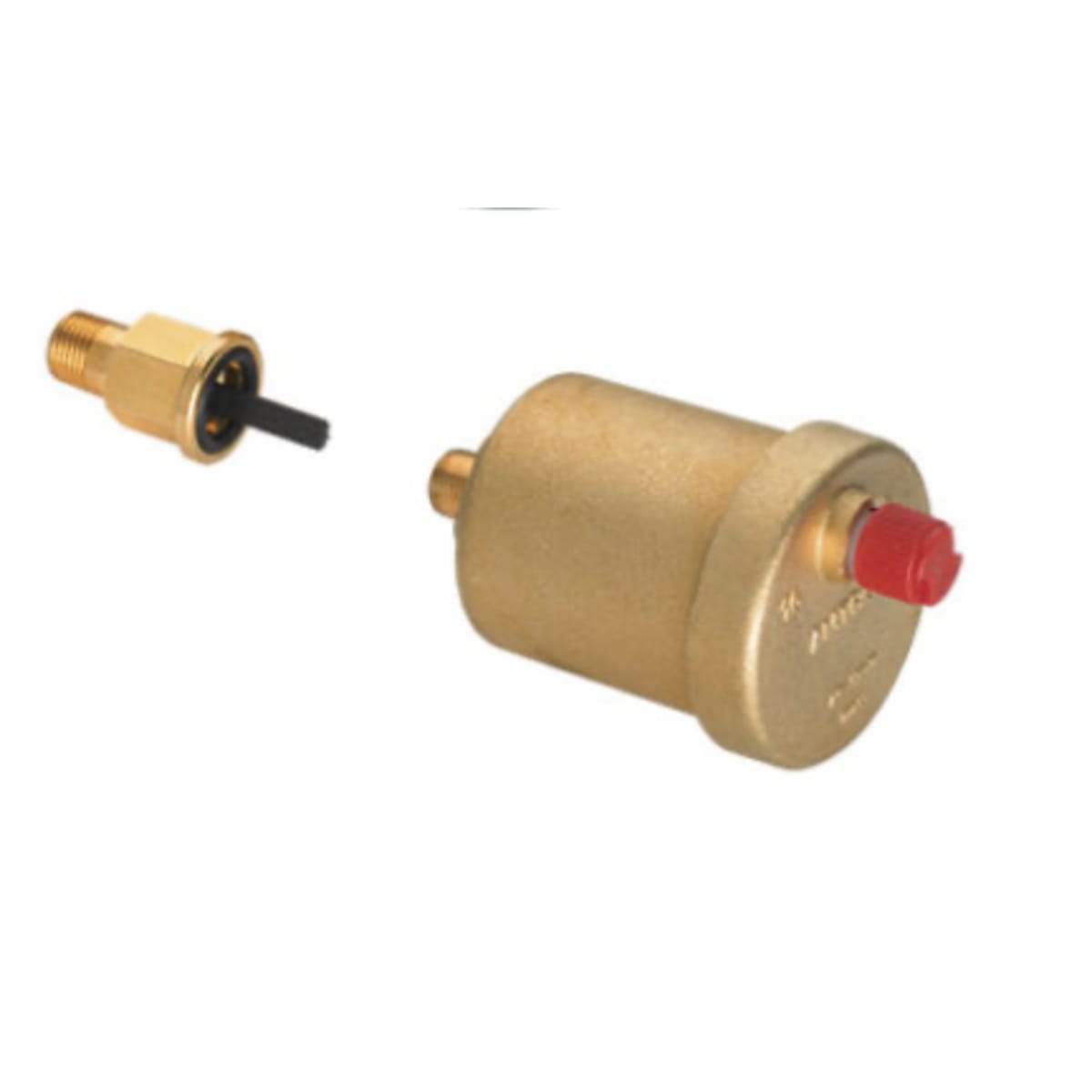

Amtrol 117-472 Air Vent High Capacity Model 747 3/8 In Inlet

Product Description

The AMTROL 117-472 is a high capacity air vent, Model 747, designed for efficient air purging in closed loop heating or chill water systems. Constructed from cast iron, this vent features a 3/8 inch inlet and 3/4 inch outlet, capable of handling a maximum pressure of 150 psi and temperatures up to 250 degrees Fahrenheit. Its 9-1/2 inch height ensures effective operation.

• IAPMO R and T Low Lead Compliant
• ISO 9001:2008 Registered
• Suitable for closed loop heating or chill water systems

Product Highlights

High capacity air vent for heating and chill water systems, featuring cast iron construction and a 150 psi maximum pressure rating.

Product Information

Standard Information

• Brand: AMTROL
• Manufacturer Part Number: 117-472
• Country of Origin: United States

Technical Specifications

• Type: Air Vents
• Model Number: 747
• Country of Origin: United States
• Height: 9-1/2 in
• Inlet Size: 3/8 in
• Material: Cast Iron
• Maximum Pressure: 150 psi
• Outlet Size: 3/4 in
• Temperature Rating: 250 deg F
