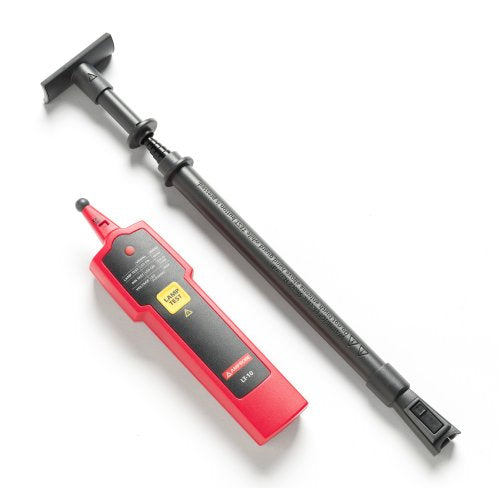

Amprobe LT-10 Lamp Tester

Product Description

The AMPROBE LT-10 lamp tester identifies issues in fluorescent light fixtures. This tool tests light bulbs, pins, and voltage to determine if fluorescent light bulbs are working before installation or removal. It features one-button operation, a 48-inch removable antenna, non-contact voltage detection, and a compact design for electrical and facilities maintenance.

• Antenna Length: 48 IN
• Compatibility Notes: T2, T4, T5, T8, T9, T10, T12 And Fluorescent
• Battery Life: Upto 500 Tests

Product Highlights

The LT-10 lamp tester verifies voltage presence, offers single-handed operation, and includes a pin test to check bulb electrode continuity.

Product Information

Standard Information

• Brand: AMPROBE
• Manufacturer Part Number: LT-10

Technical Specifications

• Brand: Amprobe
• Lamp Type: Fluorescent
• Applications: Test to Verify Whether Fluorescent Bulbs are Operational Prior to Installation or Removal
• Battery Type: (1) 9 V Lithium/Alkaline
• Temperature Rating: -10 to 50 degrees C
• AC Voltage Range: 90 to 600 V
• Indication Type: Audible/Visual
• Display Type: LED
• Probe Type: Non-Contact Detector
• Case Type: Pocket Size
• Battery Included: Yes
• Inclusion: Carrying Case, 48 Inch Antenna, Adapter Plate
• Approval: CSA (Canada and US), CE
• Applicable Standard: IEC
• Drop Proof: 36 Inch
• Maximum Antenna Length: 48 Inch
• Compatible lamps: T2, T4, T5, T8, T9, T10, T12 and fluorescent energy saving light bulbs
• Test voltage: Approximately 3 kV / 280 kHz
• Field strength: Approximately 100 μV/m at 260 – 300 kHz
• Filament test: T2, T4, T5, T8, T9, T10, T12
• VolTect™ non-contact voltage detection: AC 90 V to AC 600 V, 50/60 Hz CAT II 300 V, CAT I 600 V
• Non-contact voltage sensitivity with probe tip (typical): LED illuminates and beeps at approx. 3 mm (0.12 in) distance from a wire carrying 120 Vac LED illuminates and beeps at approx. 5 mm (0.2 in) distance from a wire carrying 230 Vac
• Operating time: One second ON, one second OFF for maximum five cycles and wait for 1 minute before taking another measurement
• Operating temperature: -10°C to +50°C (14°F to 122°F) ≤ 85% RH
• Storage temperature: -10°C to +50°C (14°F to 122°F) ≤ 85% RH
• Operating altitude: Up to 2000 meters
• Battery: One 9V lithium or alkaline battery only, 6LR61/6LF22/MN1604 or equivalent.
• Battery life: Up to 500 tests (Alkaline typically)
• Safety compliance: IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1-04
• EMC compliance: IEC 61326-1
