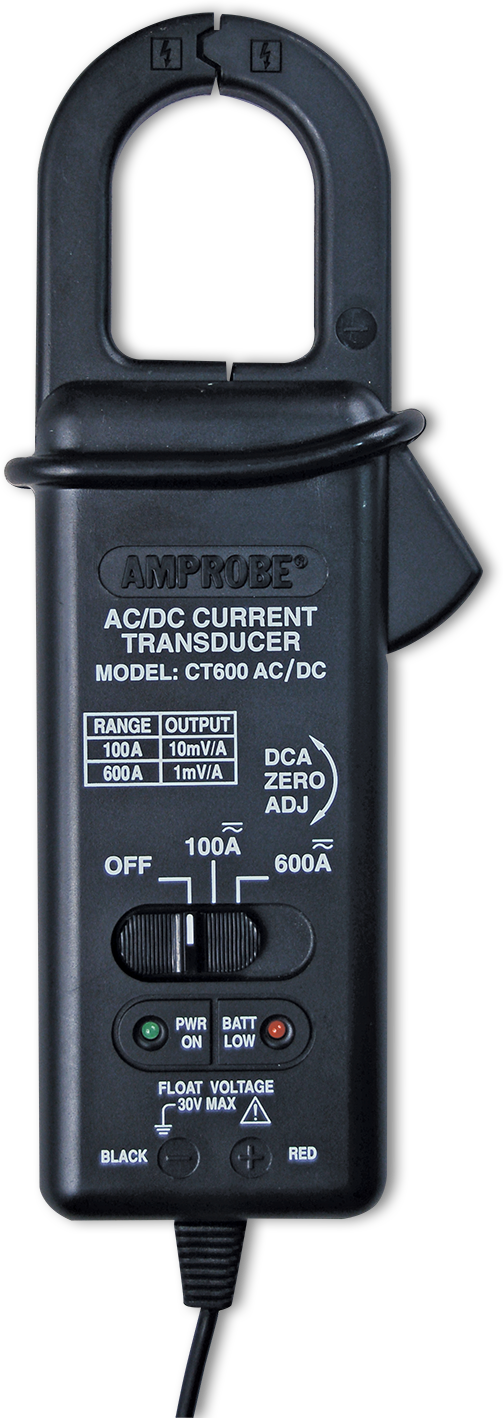

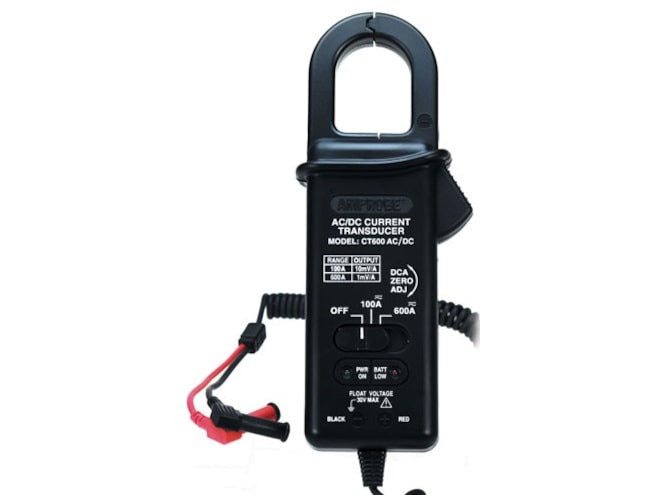

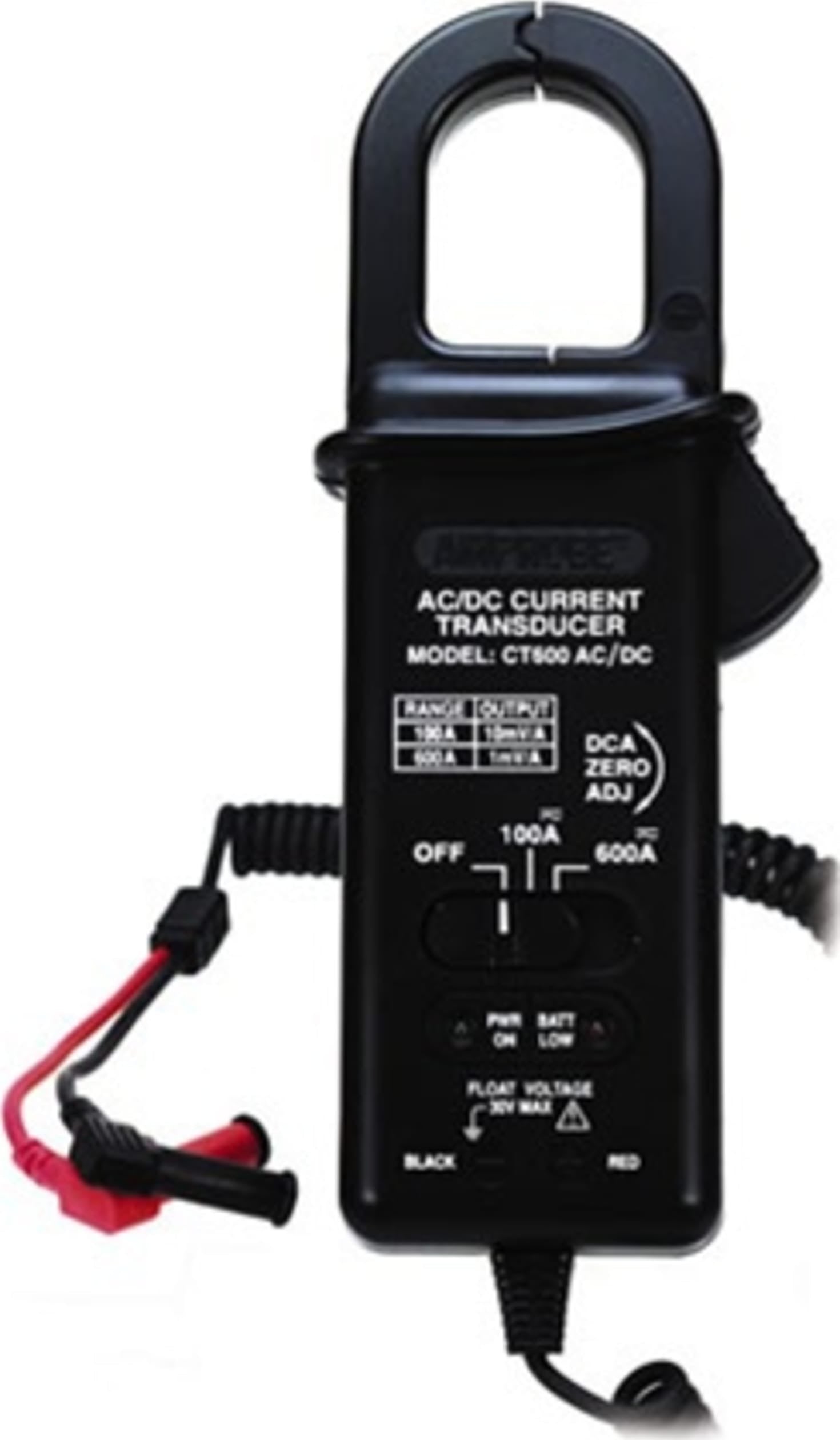

Amprobe CT-600 AC/DC Clamp-On Transducer 600 A (100/600 A ranges) CT235A

Product Description

The Amprobe CT-600 (MPN CT-600) is an AC/DC clamp-on transducer that measures current up to 600 A and provides millivolt outputs for connection to multimeters, oscilloscopes, or power recorders. It offers two measurement ranges (0–100 A and 100–600 A), overload protection to 800 A, a 40–400 Hz frequency response, and a 1.33 inch maximum jaw opening; power on and low battery indicators are included.

• Two ranges: 0–100 A (10 mV/A output) and 100–600 A (1 mV/A output); measures AC and DC up to 600 A
• Wide frequency response 40–400 Hz, maximum jaw opening 1.33 inches, millivolt output for direct instrument input
• Overload protection to 800 A, power on and low battery indication; includes carrying case

Product Highlights

600 A AC/DC clamp-on transducer with 10 mV/A and 1 mV/A outputs, 40–400 Hz response, 1.33 inch jaw opening

Product Information

Standard Information

• Brand: AMPROBE
• Manufacturer Part Number: CT-600
• Country of Origin: Taiwan
