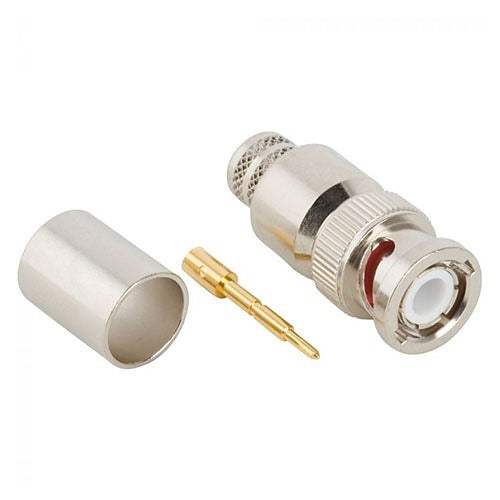

Amphenol Rf 112563 Bnc Straight Crimp Connector

Product Description

The AMPHENOL RF 112563 is a BNC straight crimp connector designed for use with coaxial cable types including B9913, 9914, and 821450. It provides a reliable RF signal connection in applications where a secure, field-terminated coax connector is required. The straight crimp body style allows for clean, repeatable terminations using standard coax crimp tooling. This connector is suited for installation by electricians, low-voltage technicians, and communications system integrators working with coaxial signal lines.

This connector is used in RF signal distribution, antenna feed lines, and communications wiring installations where BNC terminations are specified. The crimp-style termination method is well suited to field installations requiring consistent, mechanically stable connections on compatible coaxial cable assemblies. It is sold individually.

Key Features

• BNC straight crimp body style for field termination
• Compatible with coaxial cable types B9913, 9914, and 821450
• Single-unit packaging for individual replacement or low-quantity installs
• Crimp termination provides repeatable, low-resistance connections

Compatibility

Designed for use with coaxial cable types B9913, 9914, and 821450 as indicated by the manufacturer part designation.

Installation Notes

Installation should be performed by a qualified low-voltage or RF technician familiar with coaxial cable preparation and BNC crimp tooling. De-energize the circuit and disconnect the antenna or signal source before terminating the connector. Use the correct crimp die size matched to the cable outer conductor diameter to ensure a proper mechanical and electrical connection. Follow applicable NEC guidelines for coaxial wiring and connector installation in your jurisdiction.
