Ames Fire & Waterworks 0690968 IBR 304 Stainless Steel In-Building Riser 8 in

Product Description

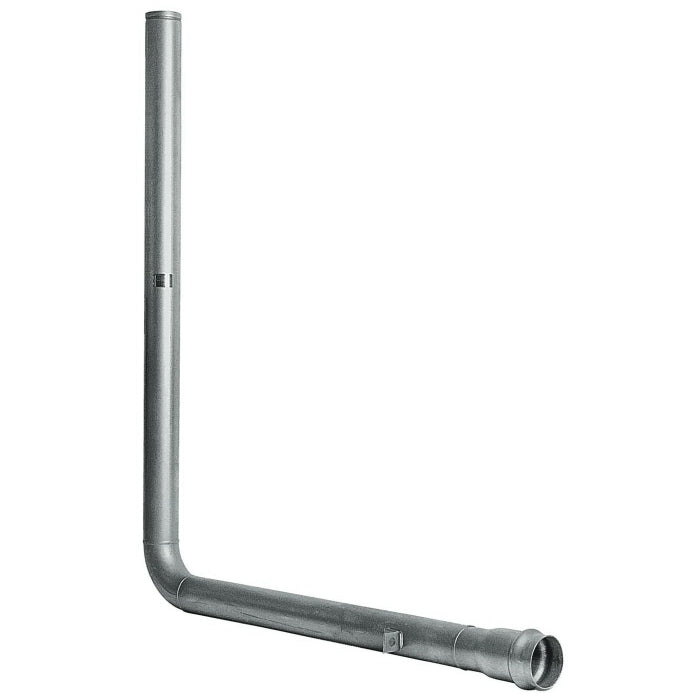

The Ames Fire & Waterworks 0690968 is an IBR 304 stainless steel in-building riser designed to connect the main fire supply to the overhead fire system in buildings. The fitting is a six by six foot unit that passes under the foundation without joints and extends through the floor. It features an eight-inch cast iron pipe size coupler for easy connections to underground supplies and an industry-standard grooved end connection on the building side.

• Lead-free construction
• Corrosion-resistant type 304 stainless steel
• Easy to install with one-person handling

Product Highlights

This riser simplifies installation while minimizing site preparation, making it an efficient choice for fire protection needs. It includes a test cap and coupler for convenience. The product meets various industry standards including UL/FM approval.

Product Information

Standard Information

• Brand: Ames Fire & Waterworks
• Manufacturer: Watts

Technical Specifications

• Connection Type: Grooved x CIPS Coupling
• Item Name: In-Building Riser
• Length: 6 x 6 ft
• Material: 304 Stainless Steel
• Pressure Rating: 200 psi
• Series: IBR
• Size: 8 in
