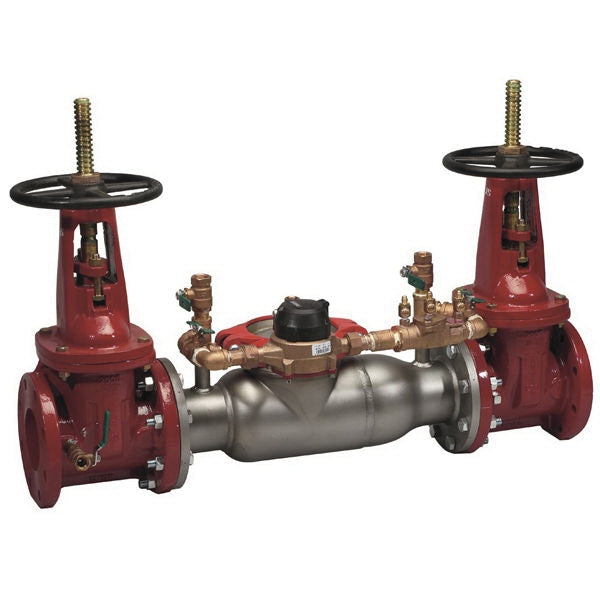

Ames Fire & Waterworks 0690503 3000SS Stainless Steel Double Check Detector Assembly with OSY Gate Valve 6 in Flanged

Product Description

The Ames Fire & Waterworks 0690503 is a stainless steel double check detector assembly with an OSY gate valve. It is designed to prevent backflow in fire protection systems. The compact design offers ease of installation in both horizontal and vertical orientations.

• Series 3000SS prevents backflow from fire protection substances.
• Lightweight stainless steel body for reduced installation costs.
• Detects underground leaks and unauthorized water usage.

Product Highlights

This unit is essential for maintaining water quality and protecting the potable water supply.

Product Information

Standard Information

• Brand: Ames Fire & Waterworks
• Manufacturer: Watts

Technical Specifications

• Connection Size: 6 in
• Connection Type: Flanged
• Dimension: 48-1/2 in L
• Disc Material: Rubber
• Item Name: Double Check Detector Assembly with OSY Gate Valve
• Material: Stainless Steel
• Pressure Rating: 175 psi
• Seat Material: Rubber
• Series: 3000SS
• Temperature Rating: 33 - 110 deg F
• Standards/Certifications: ASSE 1048, AWWA C510-92, CSA B64.5 certified, UL listed, FM approved
