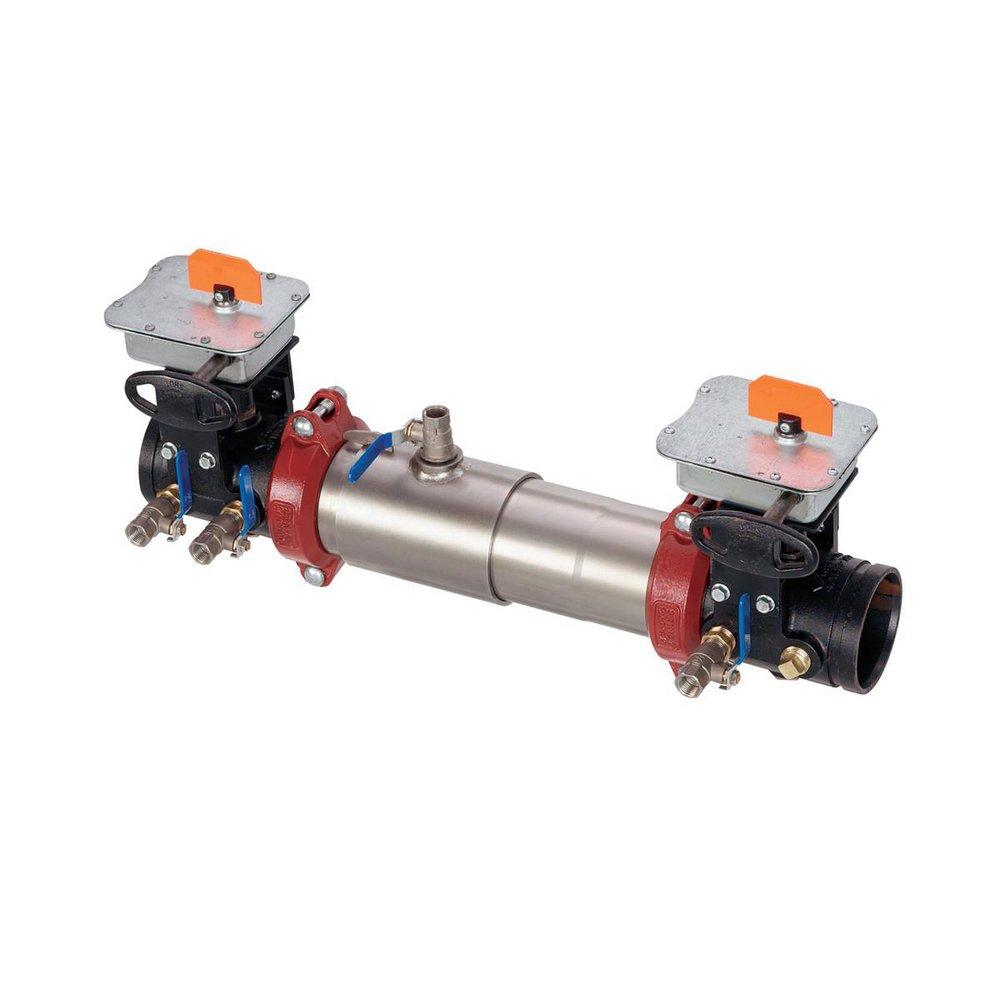

Ames Fire & Waterworks 0191419 C200 8 in. Stainless Steel Grooved 175 psi Backflow Preventer

Product Description

Ames Fire & Waterworks presents the 0191419 model, which is an eight-inch stainless steel grooved backflow preventer. Designed for applications requiring a reliable solution for preventing reverse flow, this device operates at a maximum pressure of one hundred seventy-five psi.

• Lead-free construction
• Compact design with easy maintenance access
• Approved for horizontal and vertical installation

Product Highlights

This backflow preventer is suitable for non-health hazard applications, making it ideal for fire protection systems. Its robust design features a tri-link check valve for minimal pressure loss and a tamper-switch equipped butterfly valve.

Product Information

Standard Information

• Brand: Ames Fire & Waterworks
• MPN: 0191419

Technical Specifications

• Connection Size: 8 in
• Connection Type: Grooved
• Dimension: 42-3/4 in L x 14-3/16 in H
• Disc Material: Rubber
• Material: Stainless Steel
• Model: C200-BFG
• Operator Type: Gear
• Pressure Rating: 175 psi
• Seat Material: Rubber
• Series: C200
• Sub Brand: Colt
• Temperature Rating: 33 - 140 deg F
• Standards/Certifications: ASSE 1015, AWWA C510-92, cCSAus B64.5, IAPMO PA 31, cULus, FM approved, USC, UPC, ANSI/NSF 61-G certified
• Applications: For non-health hazard applications
