Ames Fire & Waterworks 0191258 Double Check Valve Assembly with Butterfly Valve 2-1/2 in

Product Description

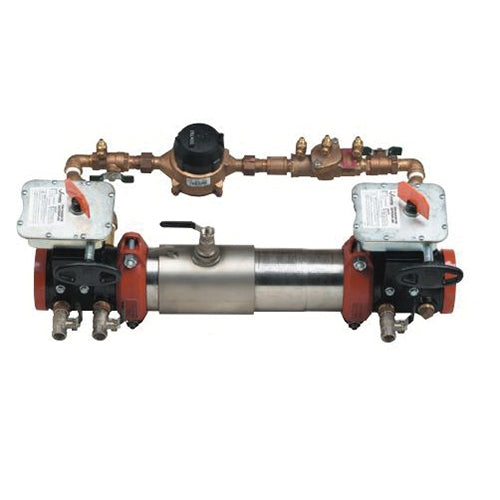

The AMES FIRE & WATERWORKS 0191258 Colt 2-1/2 in double check detector assembly prevents the reverse flow of fire protection substances and non-potable water into the potable water supply. Ideal for fire sprinkler systems and service line entrances, its compact design allows for horizontal or vertical installation. It features a stainless steel body, tri-link check valves, grooved gear operated butterfly valves with tamper switch, and four test cocks. Furnished with a gallon per minute meter.

• Lead-free
• Furnished with a gallon per minute meter
• Stainless steel single housing with access sleeve

Product Highlights

Prevents the reverse flow of fire protection substances. Compact design allows for easy maintenance. Approved for horizontal or vertical installation.

Product Information

Standard Information

• Brand: AMES FIRE & WATERWORKS
• Manufacturer Part Number: 0191258

Technical Specifications

• Connection Size: 2-1/2 in
• Connection Type: Grooved
• Disc Material: Rubber
• Item Name: Double Check Valve Assembly with Butterfly Valve
• Material: Stainless Steel
• Model: C300-BFG-GPM
• Operator Type: Gear
• Pressure Rating: 175 psi
• Seat Material: Rubber
• Series: C300
• Sub Brand: Colt
• Temperature Rating: 33 - 140 deg F
• Series/Model: Series C300
• Nominal Size: 2-1/2 IN
• Body Material: 304 Stainless Steel
• Trim Material: Silicone Or EPDM Disc
• Industry Standards: ASSE 1048, C/US CSA B64.5 Certified, C/US UL Classified, FM Approved
• Lead Free: No
• Backflow Preventer Type: Double Check Detector Assembly
• Body Finish: Stainless Steel
• Body Pattern: Straight
• Brand: Ames Fire & Waterworks
• Buy American Act Compliant: NO
• Bypass: Yes
• Bypass Size: 3/4 IN
• Cap And Tether: No
• Elbow Fitting: Yes
• Hazard Protection Level: Non Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 2 1/2 IN
• Inlet Connection Size-Metric: 65 MM
• Inlet Connection Type: Grooved Joint
• Inlet Shutoff Valve Type: Gear Operated Butterfly Valve
• Inlet Thread Type: Does Not Apply To Product
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 12.10
• Maximum Working Pressure-PSI: 175
• Meter Type: GPM
• Minimum Temperature - Celsius: 0.50
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 2 1/2 IN
• Outlet Connection Type: Grooved Joint
• Outlet Shutoff Valve Type: Gear Operated Butterfly Valve
• Outlet Thread Type: Does Not Apply To Product
• Part Number: 0191258
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Technologies: Does Not Apply To Product
• Tradename: Colt
• ASSE Standards: ASSE 1048
• AWWA: AWWA C-510 1997
• BAA Compliant: Yes
• CSA Certified: CSA B64.5
• Coating: Polymer
• Collection: C300
• End Connection 1: Grooved
• End Connection 2: Grooved
• End Connections: Grooved
• FM Approved: Yes
• IAPMO Listed: No
• Included: Shutoff Valve(s), Water Meter, Test Cock(s), Soft Seated Check Valve
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• Length: 27-1/2
• Material Type: 304
• Maximum Temperature: 140
• Minimum Temperature: 33
• NSF Certified: No
• Pressure - Maximum: 175 psi
• Recommended Valve Application: Commercial, Industrial, Waterworks
• UL Listed: Yes
• UPC: 737733002567
• Valve Body Material: Stainless Steel
• Valve Body Style: Straight
• Valve Disc Material: Rubber
• Valve Material: Stainless Steel
• Valve Seat Material: Rubber
• Valve Size: 2-1/2 in
• Valve Type: Double Check Detector Assembly
