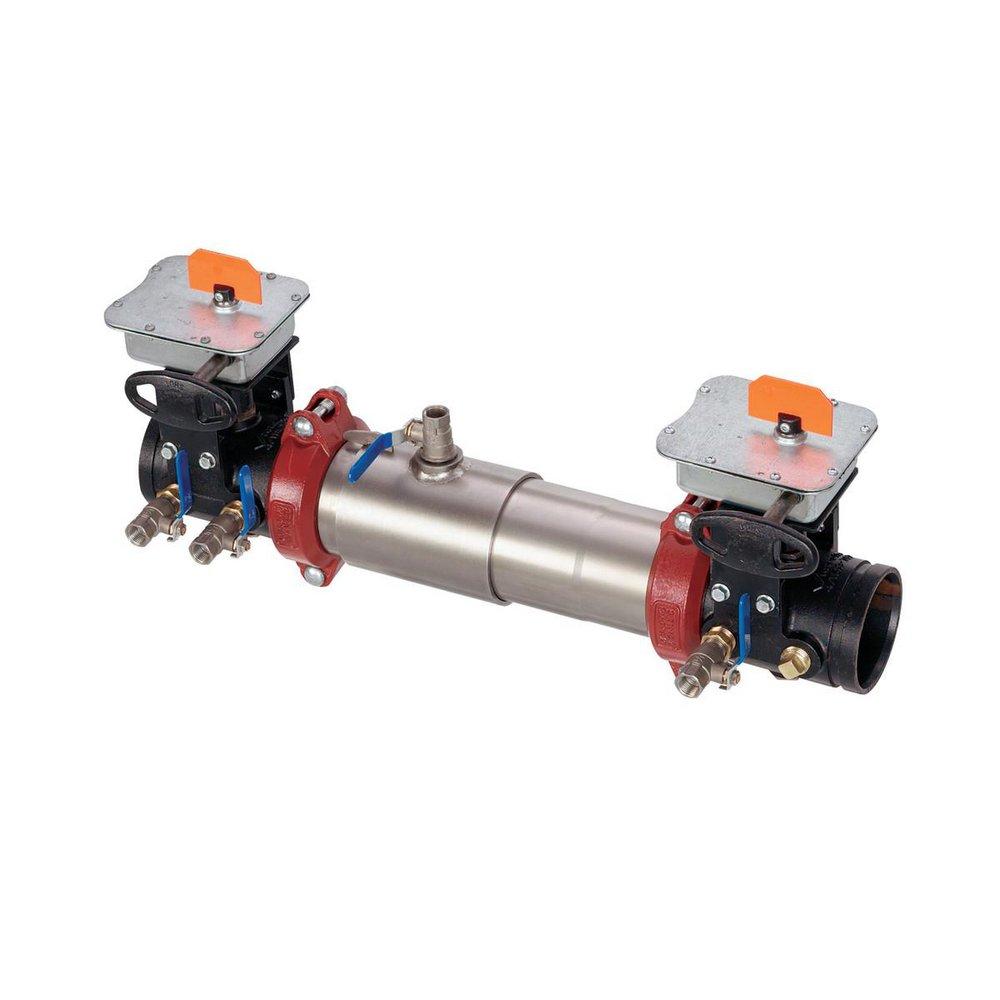

Ames Fire & Waterworks 0191224 C200 4 in Stainless Steel Grooved 175 psi Backflow Preventer

Product Description

The Ames Fire & Waterworks 0191224 is a reliable C200 four inch stainless steel grooved backflow preventer designed to maintain water quality in plumbing systems. This assembly prevents the backflow of non-potable water into the potable water supply, ensuring compliance with national plumbing regulations.

• Compact modular design with a single access sleeve for easy maintenance.
• Tri-link check modules provide low pressure loss.
• Equipped with stainless steel construction and operates up to 175 psi.

Product Highlights

This product is ideal for use in fire protection systems and other cross-connections classified as non-health hazards. Its robust design is suitable for both vertical and horizontal installations.

Product Information

Standard Information

• Brand: Ames Fire & Waterworks
• Part Number: 0191224

Technical Specifications

• Connection Size: 4 in
• Connection Type: Grooved
• Disc Material: Rubber
• Material: Stainless Steel
• Model: C200-BFG
• Operator Type: Gear
• Pressure Rating: 175 psi
• Seat Material: Rubber
• Temperature Rating: 33 - 140 deg F
• Standards/Certifications: ASSE 1015, AWWA C510-92, cCSAus B64.5, IAPMO PA 31, cULus, FM approved, USC, UPC, ANSI/NSF 61-G certified
• Applications: For non-health hazard applications
