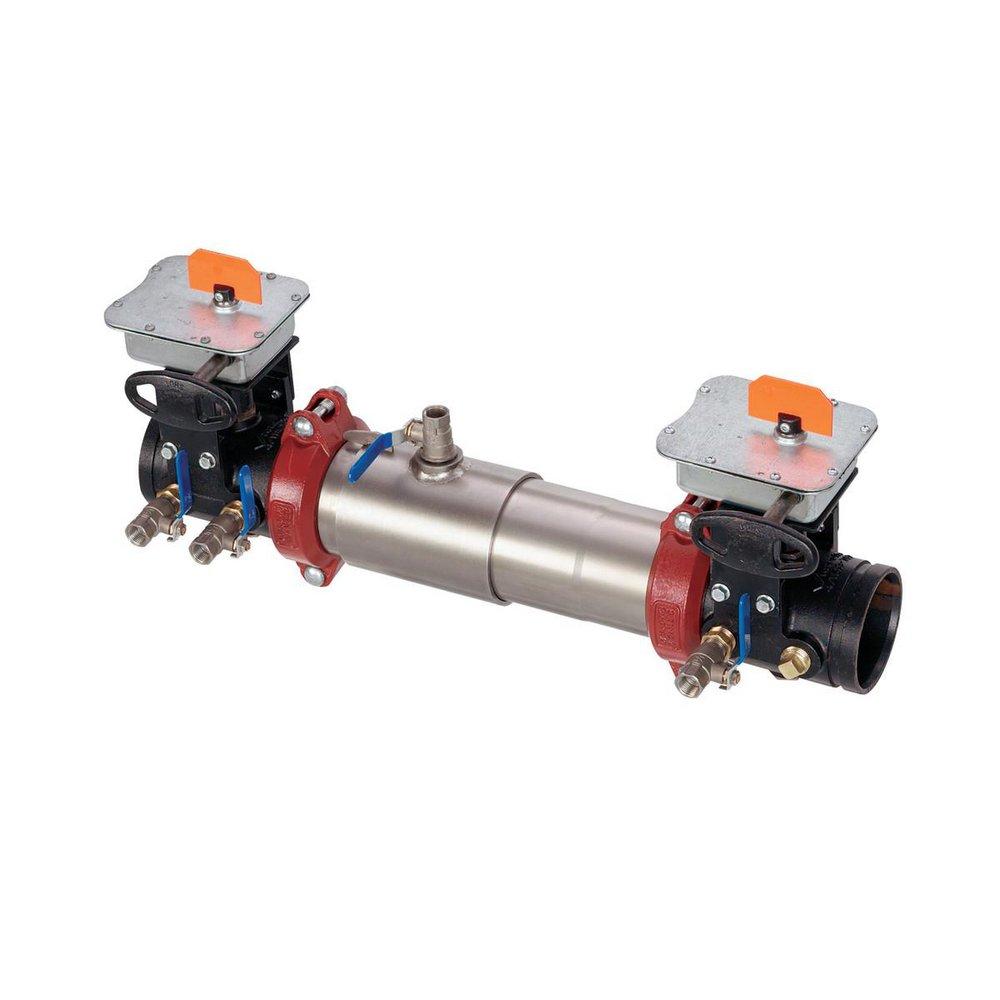

Ames Fire & Waterworks 0191222 C200 2-1/2 in. Stainless Steel Grooved 175 psi Backflow Preventer

Product Description

The Ames Fire & Waterworks 0191222 is a C200 two and a half inch stainless steel grooved backflow preventer designed for a maximum working pressure of 175 psi. This system ensures safe water flow and helps prevent contamination.

• Lead-free construction
• Single housing sleeve for easy maintenance
• Compact design with minimal pressure loss

Product Highlights

This backflow preventer is ideal for non-health hazard applications, such as fire protection systems. It features a robust stainless steel body and tri-link check modules for effective performance.

Product Information

Standard Information

• Brand: Ames Fire & Waterworks
• Material: Stainless Steel

Technical Specifications

• Connection Size: 2-1/2 inches
• Connection Type: Grooved
• Pressure Rating: 175 psi
• Temperature Rating: 33 - 140 degrees Fahrenheit
• Dimensions: 27-3/4 inches long x 9 inches wide
• Operator Type: Gear
• Disc Material: Rubber
• Seat Material: Rubber
• Standards/Certifications: ASSE 1015, AWWA C510-92, cCSAus B64.5, IAPMO PA 31, cULus, FM approved, USC, UPC, ANSI/NSF 61-G certified
