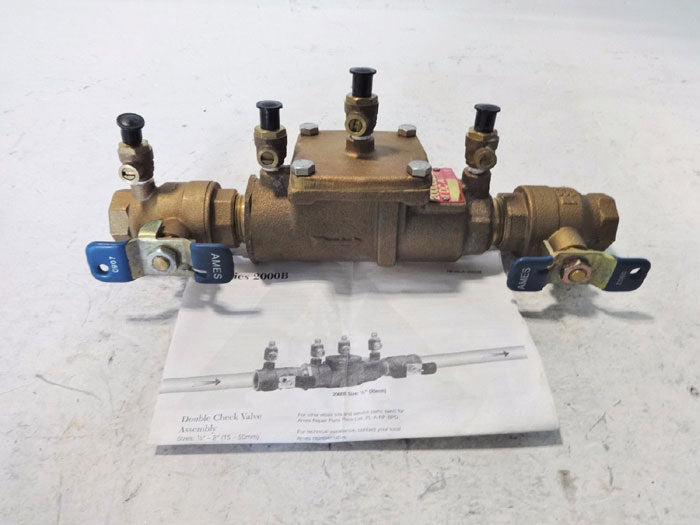

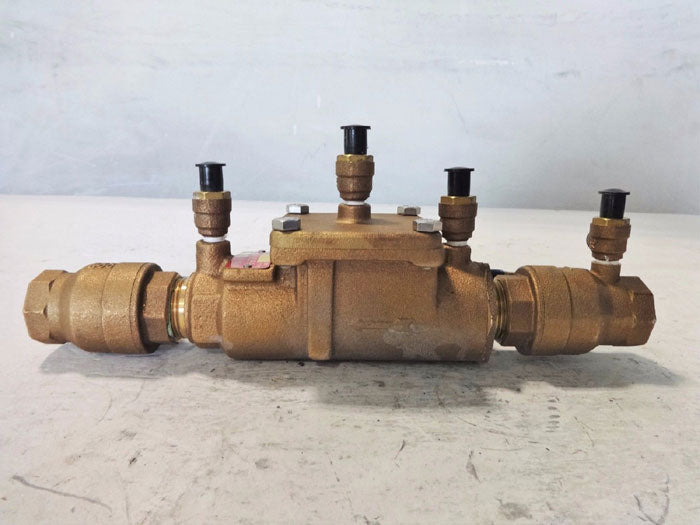

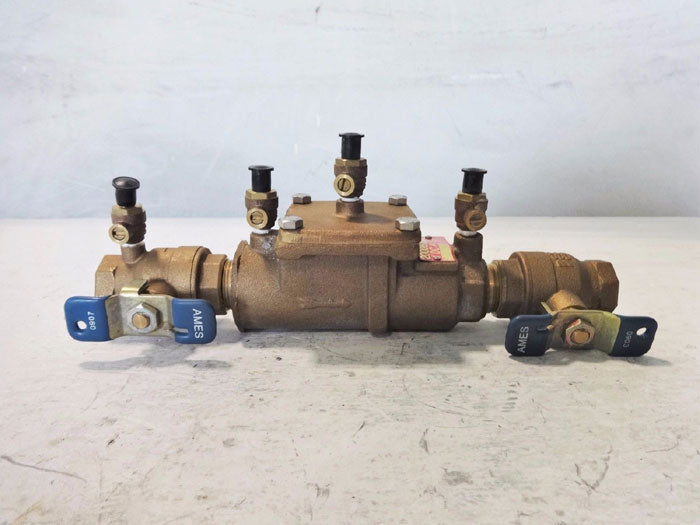

Ames Fire & Waterworks 0062492 Double Check Valve Backflow Preventer Assembly 1 inch

Product Description

The AMES FIRE & WATERWORKS 0062492 is a 1 inch double check valve backflow preventer assembly designed to prevent the reverse flow of contaminated water into the potable water supply. It is suitable for non-health hazard applications and service line entrances. Features a compact modular design with a single access cover, it's approved for horizontal and vertical installations.

• Bronze body
• One top entry access cover for easy maintenance
• Top mounted ball valve type test cocks

Product Highlights

This backflow preventer assembly includes quarter turn ball valve shutoffs with tee handles and NPT end connections.

Product Information

Standard Information

• Brand: AMES FIRE & WATERWORKS
• Manufacturer Part Number: 0062492

Technical Specifications

• Backflow Preventer Type: Double Check Valve Assembly
• Body Material: Bronze
• Body Pattern: Straight
• Brand: Ames Fire & Waterworks
• Buy American Act Compliant: YES
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: No
• Disc Material: Rubber
• Elbow Fitting: No
• Hazard Protection Level: Non Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 1 IN
• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: No
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 12.10
• Maximum Working Pressure-PSI: 175
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.50
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 1 IN
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Part Number: 0062492
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Seat Material: Rubber
• Series: 2000B
• Strainer: No
• Tradename: None
• Temperature Rating: 33 to 140 deg F
• Valve Mechanism: Ball
• Valve Size: 1 Inch
• Model Number: 2000
