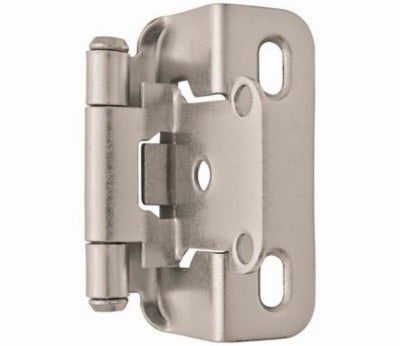

Amerock BPR7550G10 Partial Wrap Hinge 1/2 in Overlay Satin Nickel

Product Description

The AMEROCK BPR7550G10 is a partial wrap, self-closing cabinet hinge with a 1/2 inch overlay and a satin nickel finish. Partial wrap hinges mount to the inside face frame of the cabinet and wrap partially around the door edge, providing a secure pivot point without a full mortise. The self-closing mechanism uses spring tension to pull the door shut from any position short of fully open. This hinge is installed by cabinetmakers, finish carpenters, and general contractors during cabinet installation or door replacement work. The satin nickel finish provides a brushed, low-sheen appearance suited to contemporary and transitional cabinet styles.

This hinge is used on overlay cabinet doors where the door face overlaps the cabinet frame by 1/2 inch. It is appropriate for residential kitchen cabinets, bathroom vanities, laundry room cabinetry, and light commercial millwork. Each unit is sold as a pair. This package contains 25 pairs, making it practical for new construction projects, multi-cabinet installations, or contractor restocking.

Key Features

• Self-closing spring mechanism pulls door shut automatically
• Partial wrap design mounts to face frame and door edge without full mortise
• 1/2 inch overlay fits standard overlay door applications
• Satin nickel finish resists tarnish and complements brushed metal hardware
• Sold in a 25-pair pack suited for volume installations

Compatibility

Designed as an OEM-style replacement or new-installation hinge for face-frame cabinets with 1/2 inch overlay doors requiring a partial wrap, self-closing hinge.

Installation Notes

Installation is typically performed by a cabinetmaker or finish carpenter using a drill, screwdriver, and standard measuring tools. Ensure the cabinet door is properly aligned and the face frame is structurally sound before fastening. No power or utility shutoff is required for this hardware installation. Follow the door and cabinet manufacturer guidelines for screw size and pilot hole diameter to avoid splitting the frame or door stile.

Technical Specifications

• Overlay: 1/2 inch
• Finish: Satin Nickel
• Hinge Type: Partial Wrap, Self-Closing
• Package Quantity: 25 pairs
• Unit of Measure: EA
• Weight: 6.4 pounds

Standard Information

• Brand: AMEROCK
• Manufacturer Part Number: BPR7550G10
