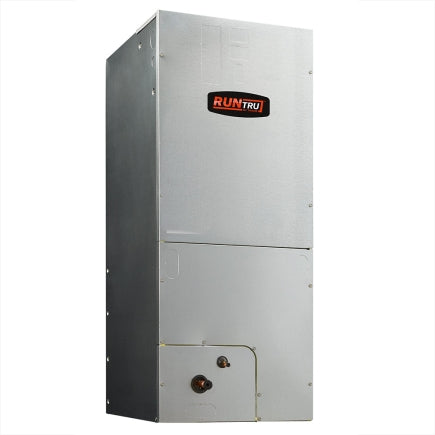

Ameristar A5AHC003A1B30A 2.5 Ton Multi Speed RunTru Air Handler - Multiposition - 18.5 inches Cabinet

Product Description

The AMERISTAR A5AHC003A1B30A 2.5 Ton Multi Speed RunTru Air Handler is a multiposition unit with an 18.5" cabinet. This air handler is compatible with heat strips up to 15 kW and utilizes R-454b refrigerant. It is designed for central split systems and features a 24V system control and an all-aluminum plate fin coil.

• Multi-speed blower motor for efficient airflow.
• Compatible with heat strips up to 15 kW.
• Suitable for downflow, horizontal, and upflow configurations.

Product Highlights

The A5AHC003A1B30A is a versatile air handler for central split systems, offering multi-position installation and compatibility with various cooling capacities.

Product Information

Standard Information

• Brand: AMERISTAR
• Manufacturer Part Number: A5AHC003A1B30A

Technical Specifications

• Model: A5AHC003A1B30A
• UPC: 612461093486
• Product Height (in): 46.75
• Configuration: Floor Mounted
• Product Length (in): 21.15
• Air Flow Direction: Downflow, Horizontal, Upflow
• Product Width (in): 18.5
• Blower Motor: Multi Speed
• Cooling Capacity: 1.5 Ton, 2 Ton, 2.5 Ton
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 15 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 15 amps
• Refrigerant: R-454b
• Suction Line Size: 3/4 inch
• System Application Type: Central Split Systems
• Voltage: 240
• Evaporator Coil:
