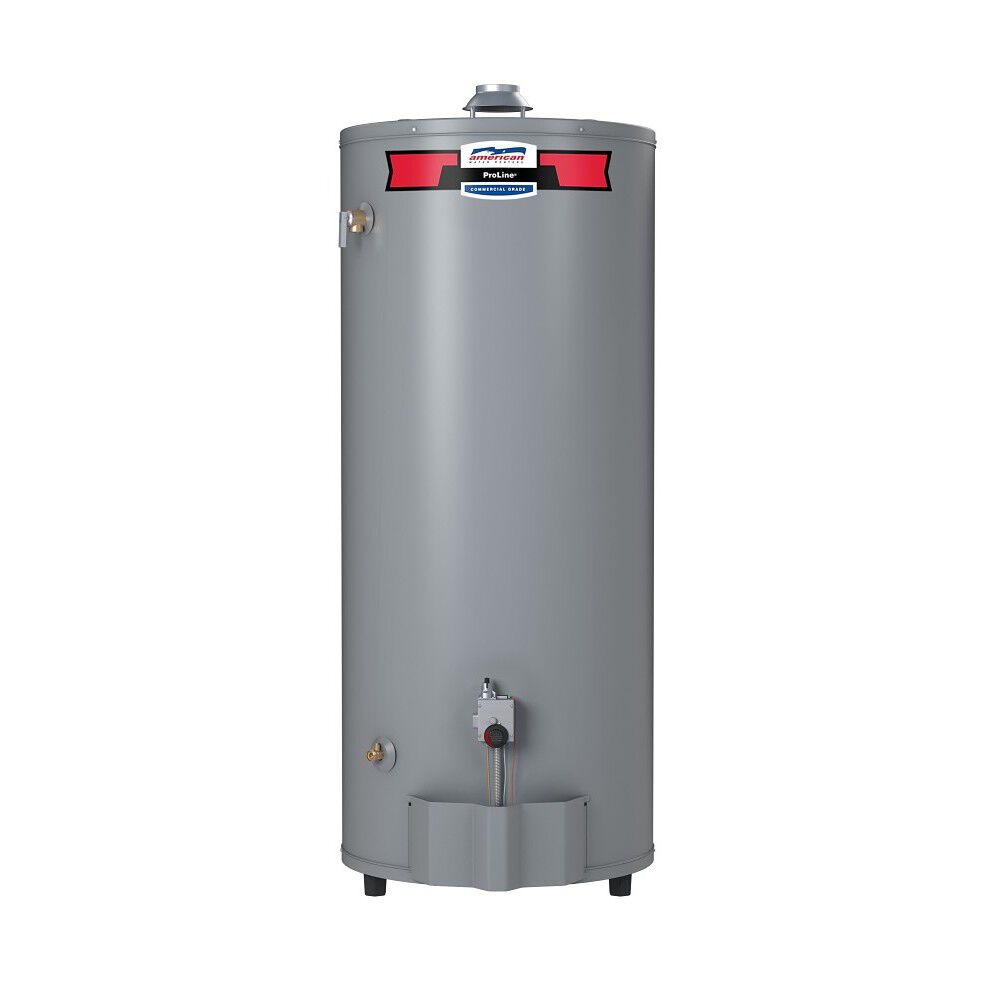

American Water Heaters AAUG62-75T75-4NV ProLine 74-Gallon Ultra-Low NOx High Recovery Natural Gas Water Heater

Product Description

The AMERICAN WATER HEATERS AAUG62-75T75-4NV ProLine® XE high capacity atmospheric vent water heater delivers exceptional performance and reliability for residential applications. With up to 75,100 BTU, it provides recoveries of up to 81 gallons per hour. The Green Choice® gas burner reduces NOx emissions by up to 33%. The self-cleaning dip tube minimizes lime and sediment buildup, maximizing hot water output and extending the unit's life.

• High recovery rate of up to 81 gallons per hour
• Eco-friendly Green Choice® gas burner reduces NOx emissions by up to 33%
• Certified for 300 psi test pressure and 150 psi working pressure

Product Highlights

The ProLine® XE water heaters are built with durability and convenience, featuring a CoreGard™ anode rod, Blue Diamond® glass coating, and a push-button Piezo ignitor.

Product Information

Standard Information

• Brand: AMERICAN WATER HEATERS
• Manufacturer Part Number: AAUG62-75T75-4NV
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 74 Gallons
• Rated Storage Volume: 71 Gallons
• UEF: 0.64
• Thermal Efficiency: 80%
• Maximum BTUs: 75,100
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Size: 1.25"
• Emissions: Ultra-Low NOx
• First Hour Rating: 102 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 5.00
• Fuel Source: NATURAL
• Height to T&P: 51.00
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: Yes
• Type: Water Heater
• Height: 58"
• Diameter: 25.25"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 14.5"
