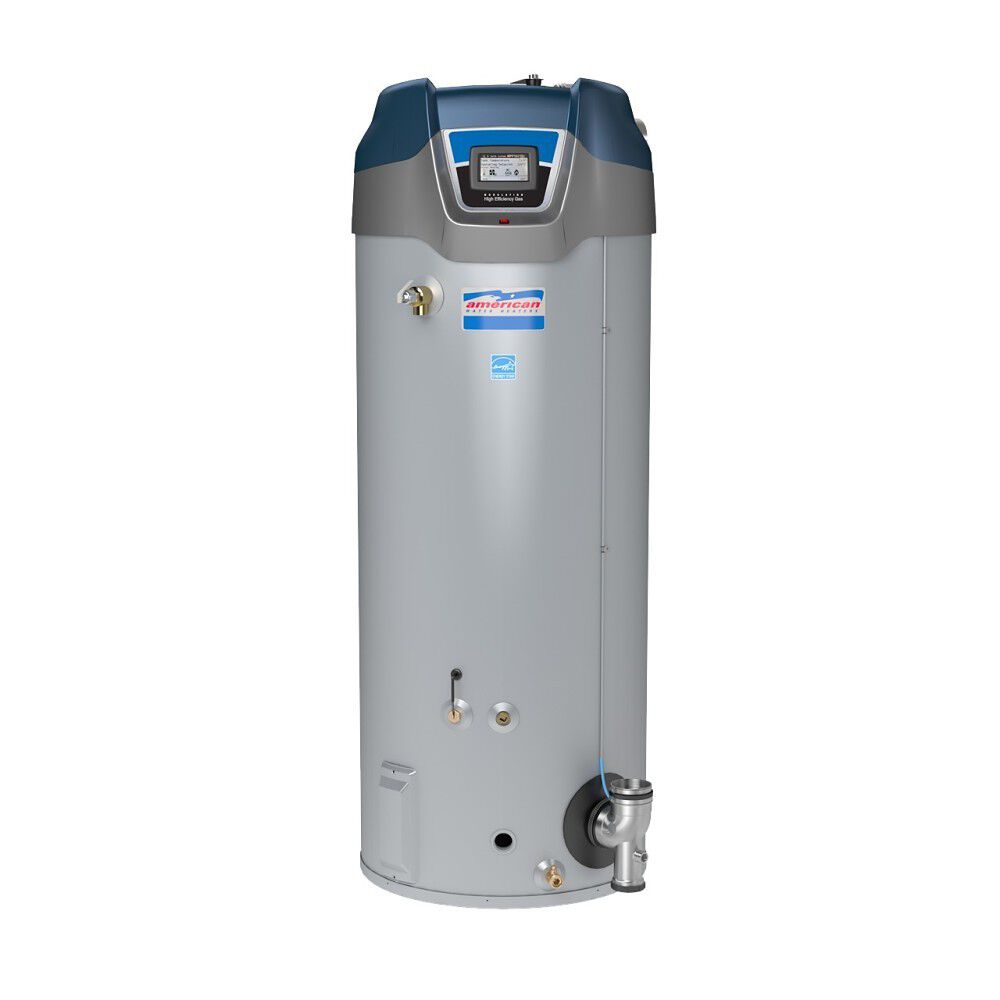

American Water Heaters AAHCG3-100T199-3N HCG® FLEX™ 100-Gallon Water Heater

Product Description

The AMERICAN WATER HEATERS AAHCG3-100T199-3N HCG® FLEX™ commercial condensing adaptive gas water heaters redefine efficiency and reliability. With advanced Adaptive Gas Technology, these water heaters automatically adjust to fuel quality. Featuring a helical coil heat exchanger, the HCG® FLEX™ maximizes heat transfer while reducing lime scale buildup. With thermal efficiencies of 95% or greater, these water heaters deliver exceptional recovery rates.

• ENERGY STAR® certified—Achieves thermal efficiencies of 95% or greater with models ranging from 100,000 to 500,000 BTU/h
• Advanced Adaptive Gas Technology—Automatically adjusts to fuel quality and abnormalities for optimal combustion and performance
• Enhanced Hot Water Availability—Intelligent Demand Response (IDR) automatically adjusts to large water draws for peak performance

Product Highlights

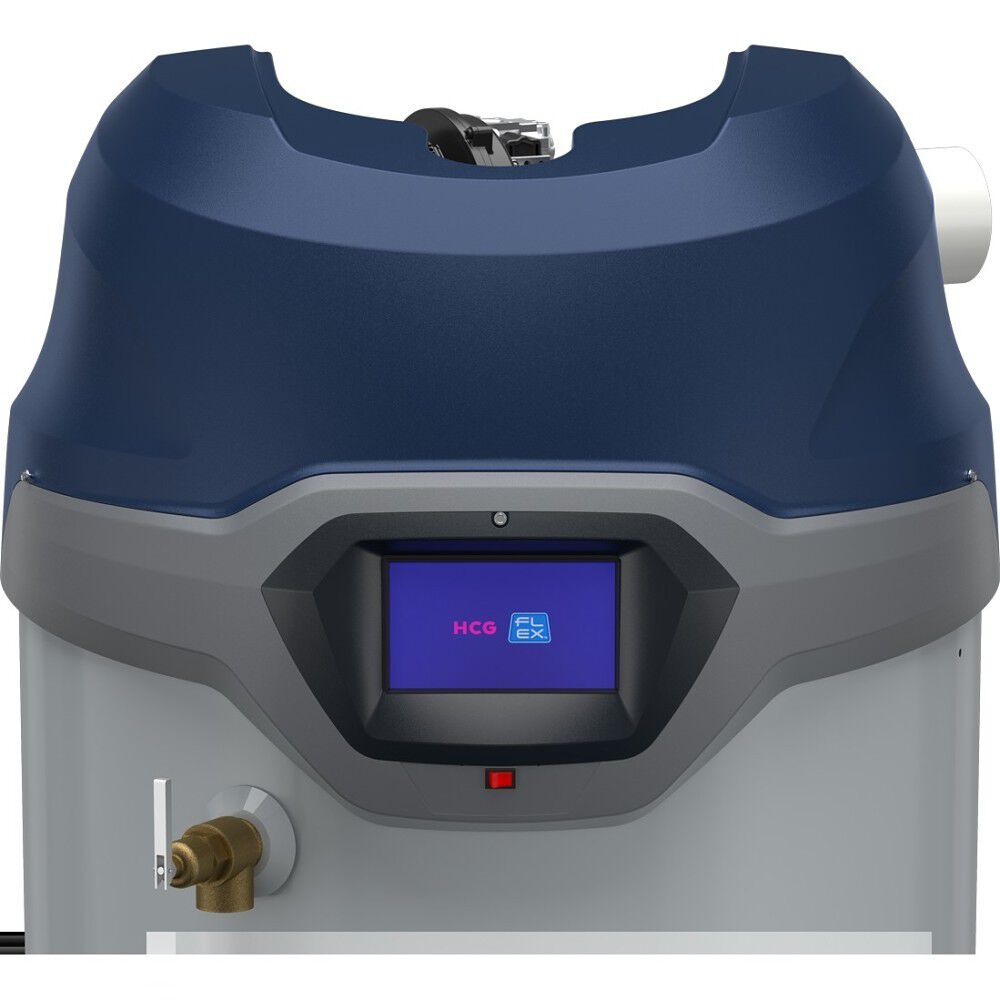

This water heater features a 7-inch color touch display with precise temperature control, built-in diagnostics, and iCOMM™ remote connectivity. It has a space-saving design with versatile venting options for easy setup.

Product Information

Standard Information

• Brand: AMERICAN WATER HEATERS
• Manufacturer Part Number: AAHCG3-100T199-3N

Technical Specifications

• Nominal Gallon Capacity: 100 Gallons
• Rated Storage Volume: 96.6 Gallons
• Thermal Efficiency: 96%
• Maximum BTUs: 199,900
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: SIDE
• Water Connection Size: 1.5"
• ASME Certified: Yes
• Amperes: 5
• Destination Country: US
• Digital Display: Yes
• ENERGY STAR Certified: Yes
• Fuel Source: NATURAL
• Height to T&P: 56.38
• Installation Type: INDOOR
• Minimum BTUs: 78,000
• Application: COMMERCIAL
• Recovery Rise at 90 F: 258
• Side Loop: No
• Voltage: 120
• Type: Water Heater
• Height: 76.5"
• Diameter: 27.75"
• Height to Gas Valve: 75.5"
• ASME Stamp: HLW
