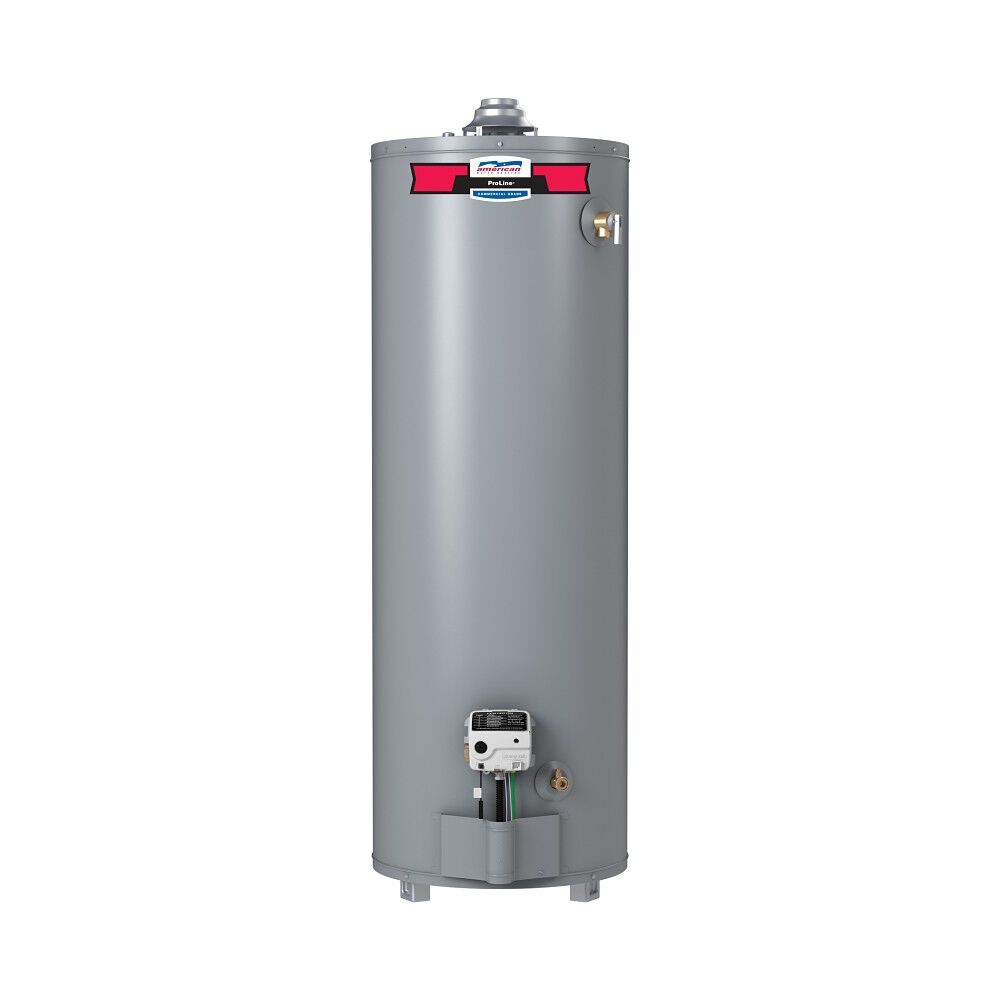

American Water Heaters AAGU62-50T40R ProLine 50-Gallon Ultra-Low NOx Atmospheric Vent Gas Water Heater

Product Description

The AMERICAN WATER HEATERS AAGU62-50T40R ProLine Ultra-Low NOx water heater features advanced Intelligent Control Logic for precise sensing and faster heating. It includes an LED status indicator for system monitoring. Built for energy efficiency, it features non-CFC foam insulation, heat traps, and a combustion chamber to reduce costs. A Green Choice Gas Burner complies with ultra-low NOx emissions.

• Delivers 84-gallon first hour rating
• 40,000 BTU input atmospheric vent design
• Green Choice Gas Burner Complies with Ultra-low NOx emission standards

Product Highlights

This water heater has a self-cleaning dip tube, CoreGard anode rod, and push-button Piezo ignitor. It also features an enhanced-flow brass drain valve, heat trap nipples

Product Information

Standard Information

• Brand: AMERICAN WATER HEATERS
• Manufacturer Part Number: AAGU62-50T40R
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 48 Gallons
• UEF: 0.64
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• Emissions: Ultra-Low NOx
• First Hour Rating: 84 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 50.50
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 57"
• Diameter: 22"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 11"
• Self Cleaning: Yes
• Max BTUs Input: 40,000
• Foam Insulation: Yes
