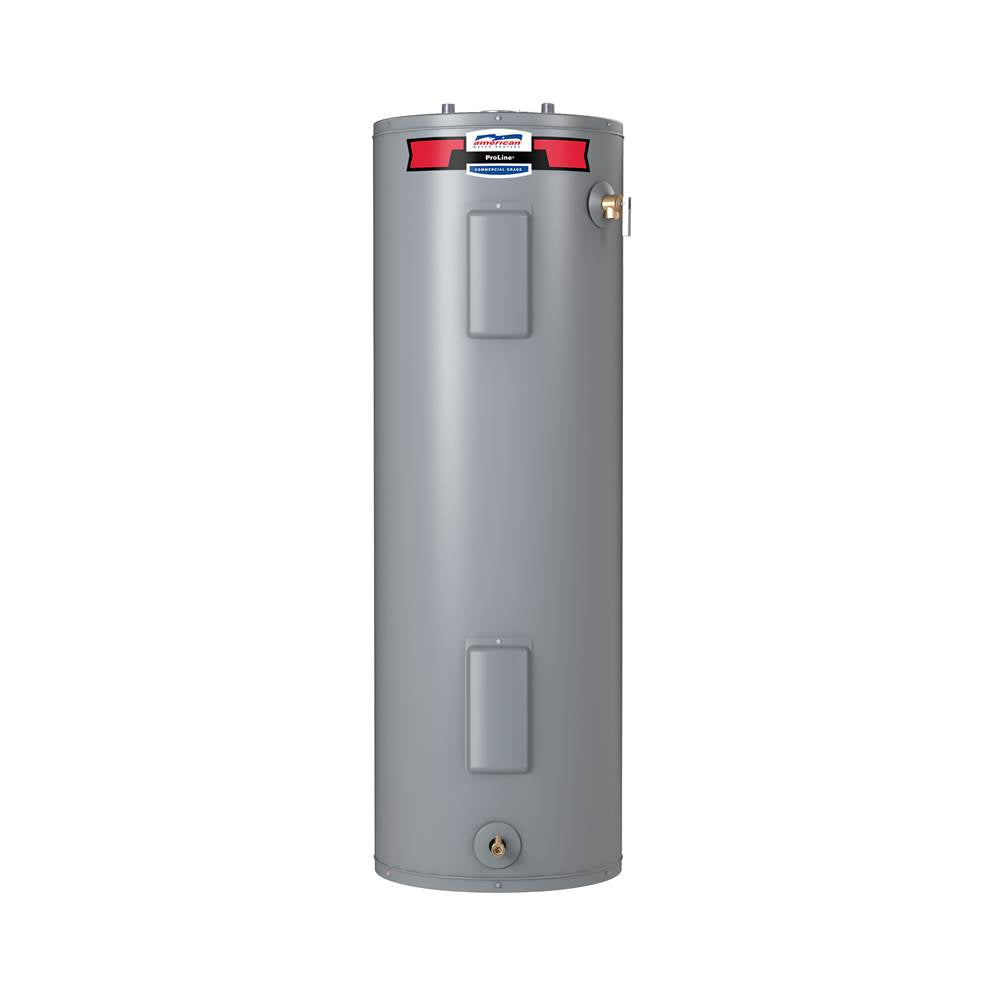

American Water 100290576 40 Gal 4500W Electric Water Heater

Product Description

The AMERICAN WATER 100290576 is a 40-gallon tall electric water heater designed for residential and light commercial hot water supply systems. Rated at 4500 watts and 240 volts single-phase, it delivers reliable domestic hot water capacity for standard household demand. The unit stands 61.25 inches tall with an 18-inch diameter footprint, making it suitable for utility closets, basements, and mechanical rooms where a tall-format tank fits the available space. This water heater is installed by licensed plumbers as part of a new installation or direct replacement of an existing electric tank-style unit.

This 40-gallon tall electric water heater is suited for residential applications requiring consistent hot water volume. The tall configuration allows a larger tank capacity within a compact floor footprint compared to short or medium formats. It operates on a standard 240-volt single-phase circuit, which is the most common electrical configuration for residential electric water heaters. Plumbers and mechanical contractors select this format when replacing aging electric tank units or roughing in new construction plumbing systems.

Key Features

• 40-gallon storage capacity in a tall-format tank
• 4500-watt heating element rated for 240-volt single-phase power
• 18-inch diameter by 61.25-inch height fits standard utility and mechanical room clearances
• Single-phase electrical configuration compatible with typical residential service panels
• Tank weight of 114 pounds supports straightforward two-person installation without specialty lifting equipment

Compatibility

Designed as an OEM-style replacement for residential electric tank water heaters requiring a 40-gallon tall-format unit on a 240-volt single-phase circuit.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the manufacturer instructions. Shut off the electrical circuit breaker supplying the water heater and close the cold water supply valve before beginning any work. Verify the existing circuit amperage and wire gauge are rated for the 4500-watt, 240-volt load before connecting. Follow local jurisdiction requirements for pressure relief valve installation and discharge piping.

Technical Specifications

• Capacity: 40 gallons
• Wattage: 4500 watts
• Voltage: 240 volts
• Phase: Single-phase
• Diameter: 18 inches
• Height: 61.25 inches
• Weight: 114 pounds
• UPC: 035505158451

Standard Information

• Brand: AMERICAN WATER
• Manufacturer Part Number: 100290576
