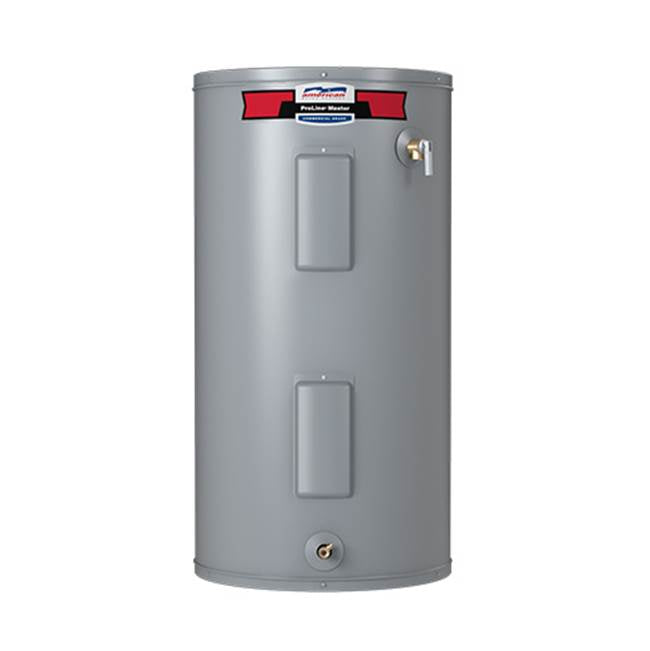

American Water 100269192 Electric Water Heater 50 Gal 4500W

Product Description

The AMERICAN WATER 100269192 is a 50-gallon short electric water heater rated at 4500 watts and 240 volts, single phase. It is designed for residential and light commercial potable hot water supply systems where vertical installation height is limited. The short-profile tank measures 23 inches in diameter and 49.25 inches in height, making it a practical fit for utility rooms, closets, and mechanical spaces with low overhead clearance. Licensed plumbers and HVAC service technicians install this unit as a primary water heating source in applications where a standard-height tank will not fit.

This unit is suited for residential installations requiring a compact footprint without sacrificing storage capacity. The 50-gallon tank capacity supports typical whole-home demand in small to medium residences. The 240-volt, single-phase electrical supply requirement is standard in residential construction, and the 4500-watt element rating delivers reliable recovery performance for everyday domestic hot water loads.

Key Features

• 50-gallon capacity in a short tank profile for low-clearance installations
• 4500-watt heating element at 240 volts, single phase
• Compact dimensions: 23 inches diameter by 49.25 inches height
• Designed for residential potable hot water systems
• Single-phase electrical supply compatible with standard residential wiring

Compatibility

Designed as an OEM-style replacement or new-installation electric water heater for residential potable hot water systems requiring a 50-gallon short-form factor at 240 volts, single phase.

Installation Notes

Installation must be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Disconnect and lock out electrical power at the breaker before servicing or connecting the unit. Verify that the supply circuit is properly sized for a 240-volt, single-phase, 4500-watt load before making electrical connections. A temperature and pressure relief valve must be installed and piped to a safe discharge location per applicable code.

Technical Specifications

• Tank Capacity: 50 gallons
• Wattage: 4500 watts
• Voltage: 240 volts
• Phase: Single phase
• Diameter: 23 inches
• Height: 49.25 inches
• Weight: 120 pounds
• UPC: 035505158512

Standard Information

• Brand: AMERICAN WATER
• Manufacturer Part Number: 100269192
