American Valve CONDENSATERX Condensate Neutralizer Kit

Product Description

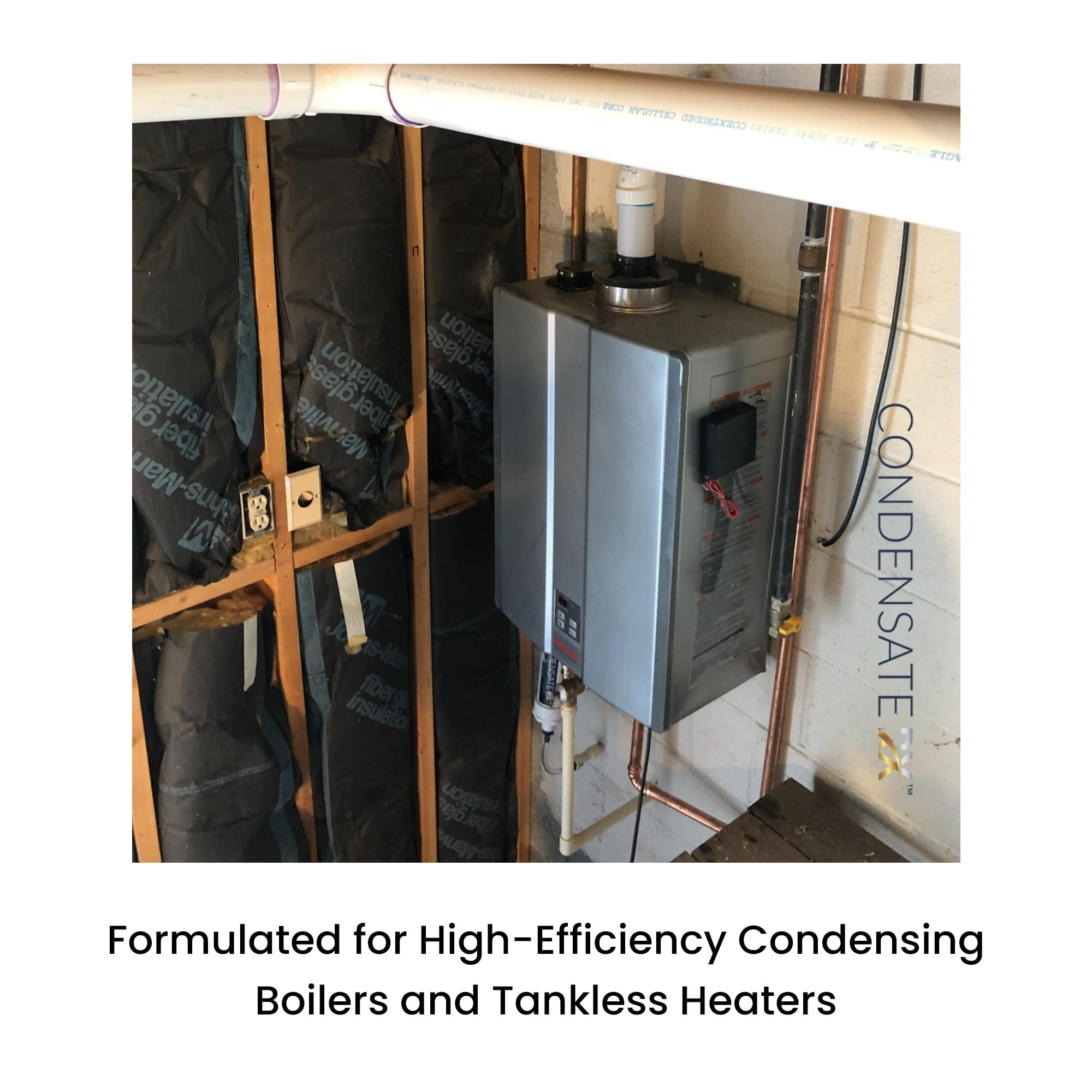

The AMERICAN VALVE CONDENSATERX is a condensate neutralizer kit designed to treat acidic condensate produced by high-efficiency condensing boilers and tankless water heaters. High-efficiency appliances generate condensate with a low pH that can damage drain lines, septic systems, and surrounding landscaping if left untreated. The CONDENSATERX uses a blended neutralizing media to raise the pH of that condensate before it reaches the drainage system. The kit includes 1/2-inch FNPT connections with adapters for 1/2-inch hose barb and 3/4-inch PVC socket, covering common residential drain line configurations. Rated for systems up to 220,000 BTU/h and a maximum flow rate of 3.8 gallons per hour.

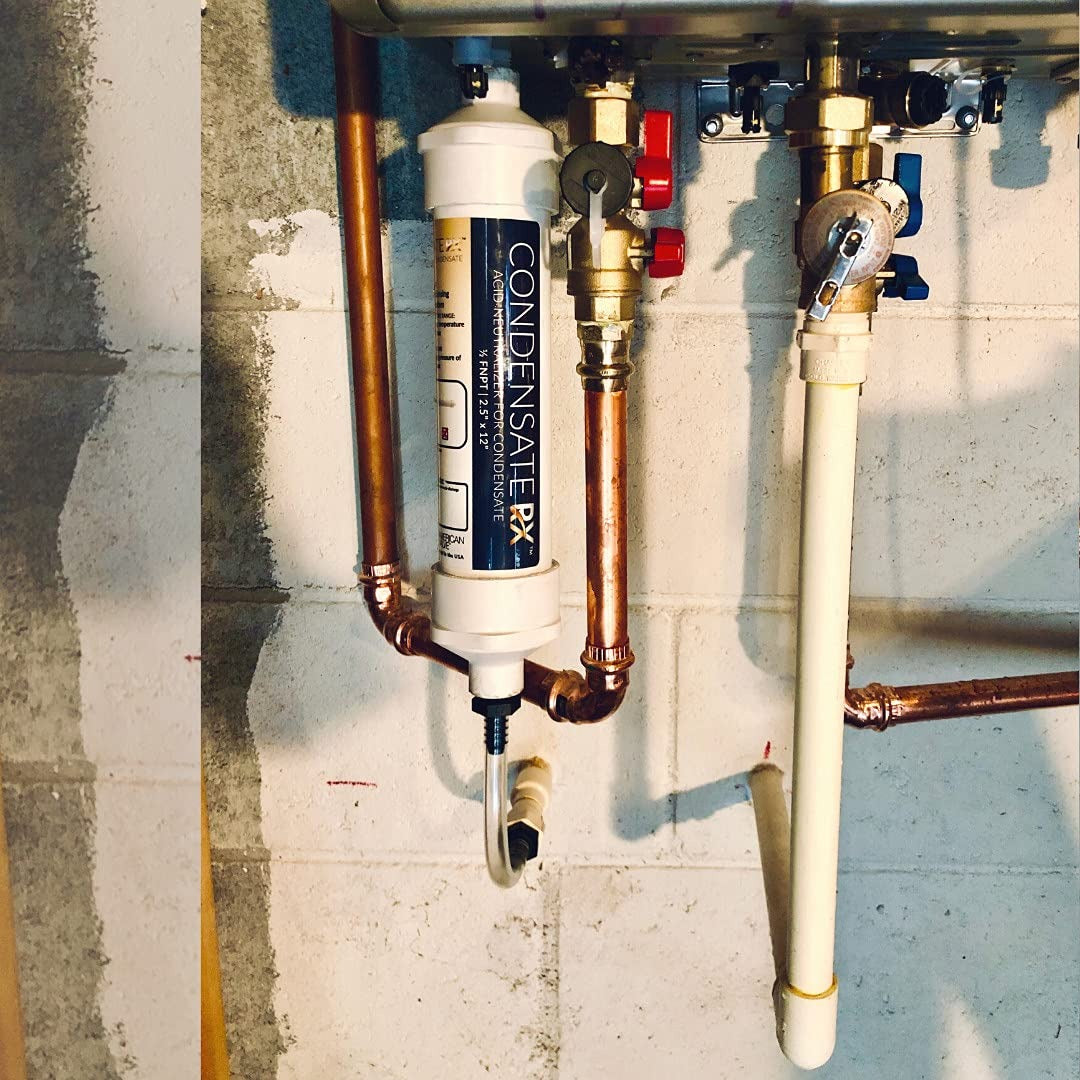

This neutralizer is intended for residential and light commercial installations where high-efficiency condensing boilers or tankless water heaters produce acidic condensate that must be treated before discharge. The low-profile PVC body installs directly inline on the condensate drain line. It can be mounted horizontally or vertically at angles up to 30 degrees, giving installers flexibility in tight mechanical rooms and utility spaces. It is suited for new installations and retrofit applications where local plumbing codes require acid neutralization before condensate discharge to a municipal sewer, septic system, or ground drainage.

Key Features

• Neutralizing media blend treats acidic condensate from high-efficiency boilers and tankless water heaters
• Includes 1/2-inch FNPT connections with adapters for 1/2-inch hose barb and 3/4-inch PVC socket
• Installs horizontally or vertically up to a 30-degree angle for flexible placement
• Rated for boilers up to 220,000 BTU/h with a maximum flow rate of 3.8 gallons per hour
• Supports compliance with local plumbing codes requiring condensate acid neutralization
• Made in the USA from PVC construction

Compatibility

Designed for use with high-efficiency condensing boilers up to 220,000 BTU/h and tankless water heaters with a condensate flow rate not exceeding 3.8 gallons per hour. Connects to 1/2-inch FNPT, 1/2-inch hose barb, or 3/4-inch PVC socket drain line configurations.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable local plumbing codes, including those that mandate acid neutralization of condensate prior to drain discharge. Shut off the appliance and allow the condensate system to drain before making any connections. Confirm that the selected mounting orientation does not exceed the 30-degree vertical angle limit specified for this unit. Check local authority having jurisdiction requirements for condensate disposal before commissioning.
