American Valve 5800L 4 Ball Valve 4 in Flanged

Product Description

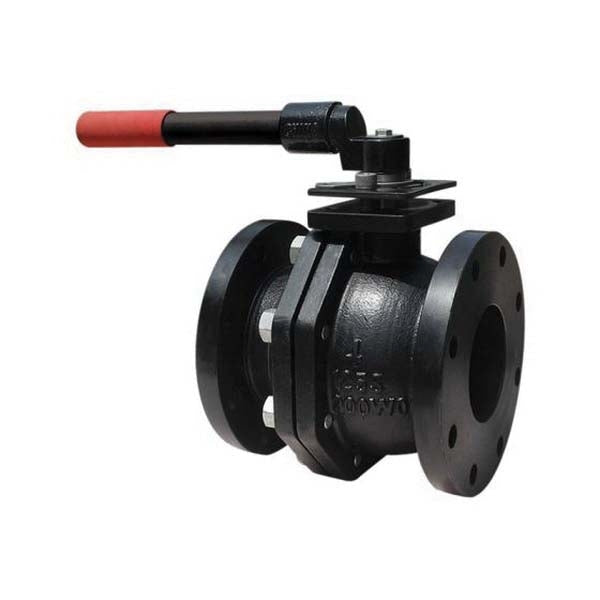

The American Valve 5800L4 is a 4-inch flanged ball valve made from A126 Class B cast iron. This valve features an epoxy powder coating that meets FDA standards, making it suitable for various applications. The solid cast iron PTFE coated ball and stainless steel stem ensure durability and reliability.

• FDA food-grade epoxy powder coat
• Blow-out proof stainless steel stem
• ISO 5211 mounting pad

Product Highlights

This American Valve model is certified to meet federal and industry standards, ensuring high quality and performance.

Product Information

Standard Information

• Brand: American Valve
• Part Number: 5800L4

Technical Specifications

• Ball Material: PTFE Coated Cast Iron
• Connection Size: 4 in
• Connection Type: Flanged
• Dimension: 9 in L
• Finish: Epoxy Powder Coated
• Flow Co-Efficient: 2500 Cv
• Material Specifications: ASTM A126 B, ASTM A193 B7, ASTM A276
• Pressure Rating: 125 psi WSP, 200 psi WOG
• Temperature Rating: 250 deg F
• Stem Material: 410 Stainless Steel
• Torque Rating: 130 ft-lb
