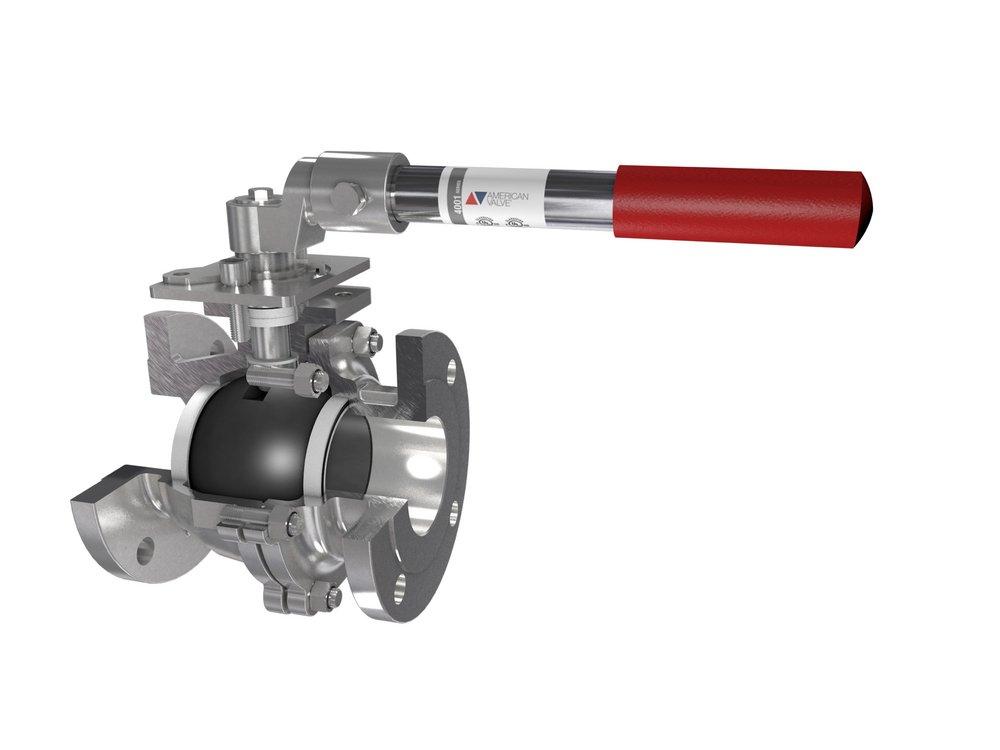

American Valve 4001 2IN Ball Valve, Flanged, Stainless Steel Ball Valve

Product Description

The AMERICAN VALVE 4001 2IN is a 2" CF8M stainless steel flanged ball valve designed for a full port. Constructed from cast 316 stainless steel (CF8M), it features a PFA fused solid stainless steel ball and reinforced PTFE seats. This valve provides Class VI positive shutoff.

• Cast 316 Stainless Steel (CF8M)
• PFA* Fused Solid Stainless Steel Ball
• Class VI Positive Shutoff

Product Highlights

The AMERICAN VALVE 4001 2IN is ideal for gas, oil, and water applications with a temperature range up to 366 Deg F.

Product Information

Standard Information

• Brand: AMERICAN VALVE
• Manufacturer Part Number: 4001 2IN
• Country of Origin: United States

Technical Specifications

• Valve Operation: Lever
• Brand: American Valve
• UPC: 611918015323
• Country of Origin: United States
• ANSI: ANSI 372, ANSI 61, ANSI B16.10
• ASTM: ASTM A-193, ASTM A-536, ASTM A-53M, ASTM A-743 Grade CA 15, ASTM D-3294, ASTM D-4894, ASTM D-749, ASTM SA-479 10a
• AWWA: AWWA C-507 1999
• Clean Bagged: No
• Collection: 4001 Series
• End Connection 1: Flanged
• End Connection 2: Flanged
• End Connections: Flanged
• FM Approved: No
• Handle Material: Stainless Steel
• IAPMO Listed: No
• Length: 7
• MSS: MSS SP-72
• Material: Stainless Steel
• Material Type: 316
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure Class: 150#, 300#
• Recommended Valve Application: Gas, Oil, Water
• Temperature Range: Up to 366 Deg F
• UL Listed: Yes
• Valve Body Style: Ball
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE 15% Glass Filled
• Valve Size: 2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Weight: 22
