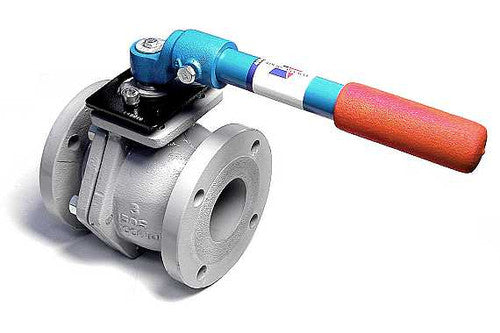

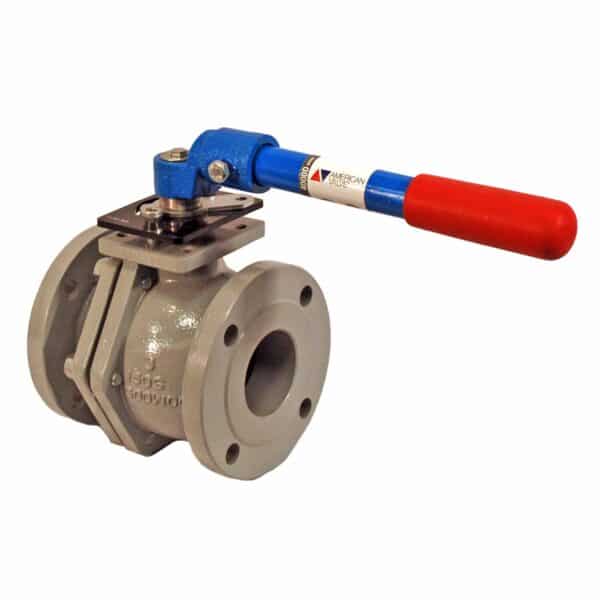

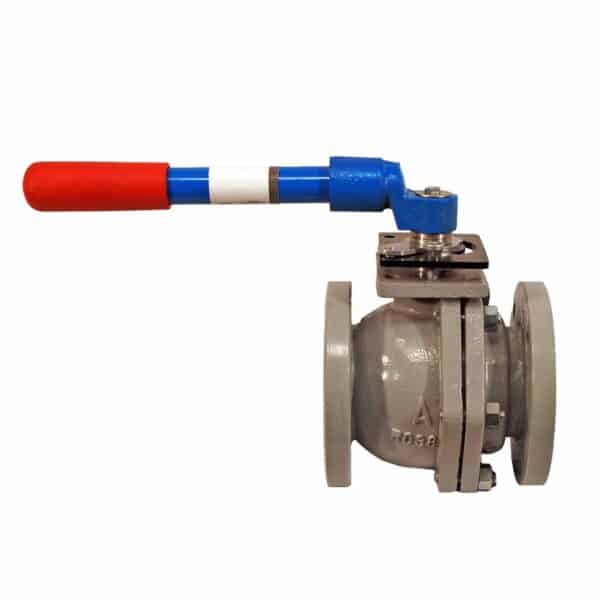

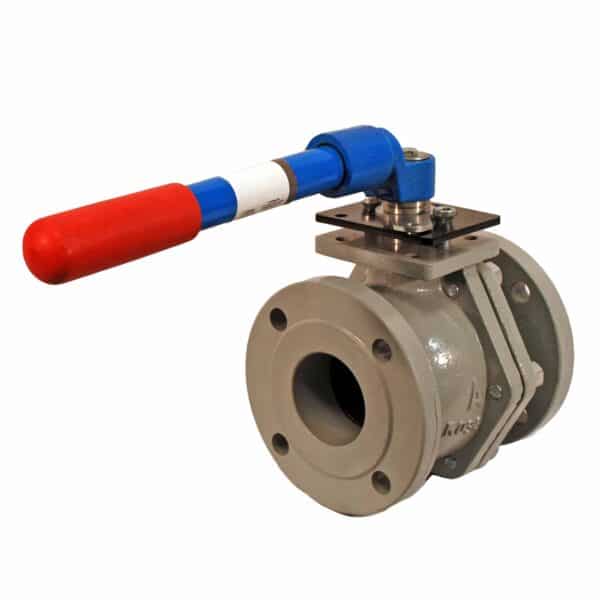

American Valve 4000D Model 4000D Ductile Iron Flanged Ball Valve

Product Description

The AMERICAN VALVE 4000D is a solution without compromise. This design provides maximum flow rate free from obstruction. The seats are protected in the full open or closed position. Automation is easy with low operating torque and an ISO standard mounting pad. 4000 Series ball valves are used in critical applications.

• A536 Grade 65-45-12 Ductile Iron Body
• PFA* Fused Solid Stainless Steel Ball
• Class VI Positive Shutoff

Product Highlights

This ductile iron ball valve replaces carbon steel ball valves, gate valves, and eccentric plug valves. It features dramatically lower torque, and the corrosion-resistance of PFA fused into the solid stainless steel ball.

Product Information

Standard Information

• Brand: AMERICAN VALVE
• Manufacturer Part Number: 4000D

Technical Specifications

• Pressure Rating: 150 WSP, 300 WOG
• End Connections: Flange x Flange
• Certification Marks: Water Quality Association (WQA)
• Compliance Certification: NSF/ANSI 372, NSF/ANSI/CAN 61
• Max. Temperature: 366 F
• Material: Iron, Stainless Steel
• Brand: American Valve
• Inlet Connection Type: Flange
• Outlet Connection Type: Flange
• Number of Ports: 2
• Outlet Connection Size: 3 Inches
• Valve Type: Ball Valve
• Size: 3 inches
• Ball: PFA Fused Ball
• Body: Ductile Iron/A536 65-45-12
• Stem: Blow-out Proof Stem
• Ratings: 150 PSI WSP, 300 PSI WOG, 366 F
• Sizes: 2", 2 1/2", 3", 4", 6", 8", 10"
