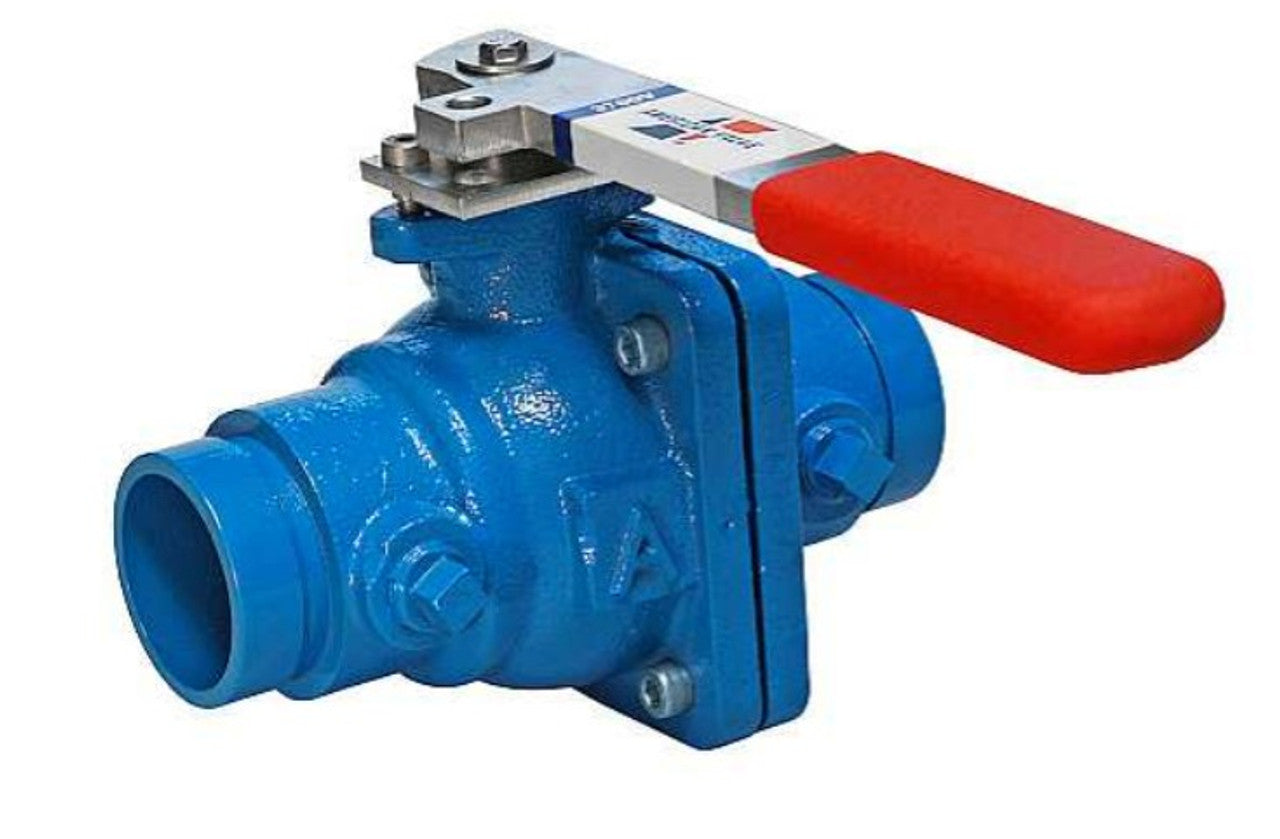

American Valve 3700V6 CI Grooved Ball Valve 6 in

Product Description

The American Valve 3700V6 is a lead-free ball valve designed with a grooved end style. It is suitable for liquid and air applications, rated for a pressure of two hundred psi WOG. This valve features a six-inch nominal size with a full port design for efficient flow.

• Constructed with a cast iron body and ball.
• Includes a handle actuator for easy operation.
• Designed to handle temperatures up to two hundred degrees Fahrenheit.

Product Highlights

This valve is ideal for various applications, including air, liquid, and backflow prevention.

Product Information

Standard Information

• Manufacturer: American Valve
• Series: 3700V

Technical Specifications

• Nominal Size: 6 in
• Orifice Size: 6 in
• Actuator Type: Handle
• Body Material: Cast Iron
• Ball Material: Cast Iron
• End Style: Grooved
• Pressure Rating: 200 psi WOG
• Temperature Rating: 200 deg F
• Inlet to Outlet Length: 12.56 in
• Top to Inlet Center: 8.31 in
• Softgoods Material: Buna-N/PTFE
• Trim Material: PTFE/Stainless Steel
• Domestic/Import: Import
