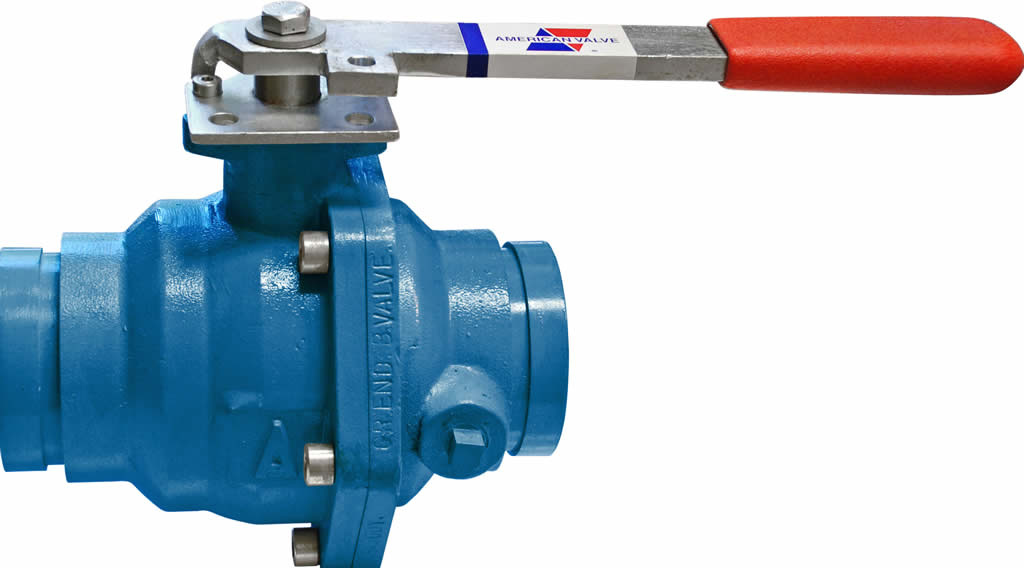

American Valve 3700V4 CI Grooved Ball Valve

Product Description

The American Valve 3700V4 is a lead-free ball valve designed for fluid control in air and liquid applications. It features a grooved end style and is rated for 200 psi WOG pressure. This valve has a full port passage for optimal flow and is made from cast iron with PTFE/stainless steel trim.

• Compatible with air and liquid media
• Equipped with a handle actuator for easy operation
• Meets ASTM A126 Class B and NSF/ANSI standards

Product Highlights

This ball valve is ideal for plumbing and HVAC systems. Its durable construction ensures long service life and reliable performance.

Product Information

Standard Information

• Manufacturer: American Valve
• MPN: 3700V4

Technical Specifications

• Actuator Type: Handle
• Ball Material: Cast Iron
• Body Material: Cast Iron
• End Style: Grooved
• Inlet to Outlet Length: 9.9 inches
• Media: Air/Liquid
• Nominal Size: 4 inches
• Orifice Size: 4 inches
• Port Type: Full
• Pressure Rating: 200 psi WOG
• Series: 3700V
• Softgoods Material: Buna-N/PTFE
• Temperature Rating: 200 deg F
• Top to Inlet Center: 6.34 inches
• Trim Material: PTFE/Stainless Steel
