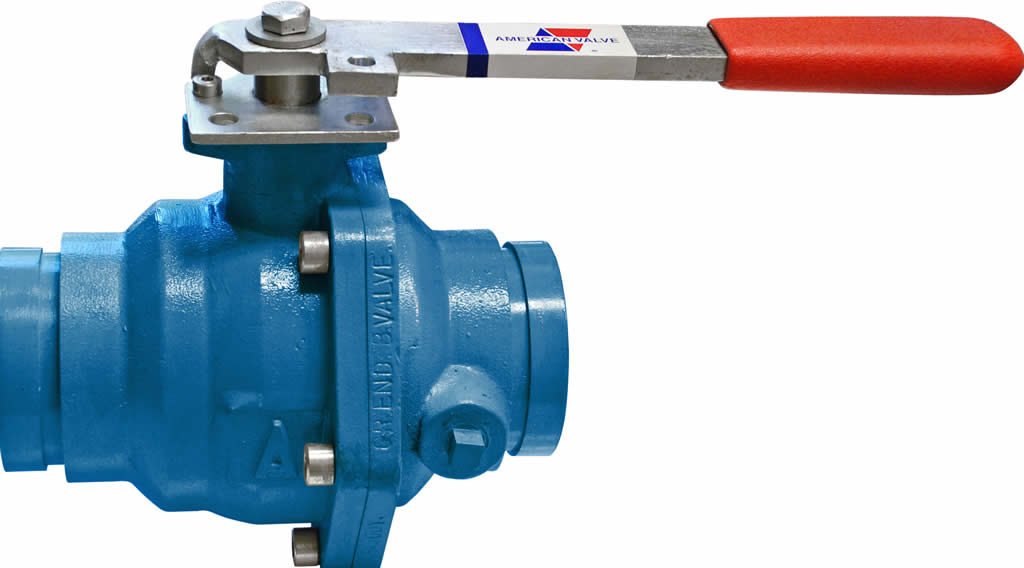

American Valve 3700V3 CI Grooved Ball Valve 3 in

Product Description

This American Valve 3700V3 CI Grooved Ball Valve has a nominal size of three inches. It is designed for air and liquid applications. The valve features a grooved end style and can handle a pressure rating of two hundred psi WOG.

• Full port design for maximum flow capacity.
• Durable cast iron construction.
• Low torque handle actuator for easy operation.

Product Highlights

This ball valve provides reliable control for various media including air and liquid. It is constructed for durability and ease of use with features like a positive shut-off and blow-out proof stem.

Product Information

Standard Information

• Manufacturer: American Valve
• Model Number: 3700V3

Technical Specifications

• Actuator Type: Handle
• Ball Material: Cast Iron
• Body Material: Cast Iron
• End Style: Grooved
• Inlet to Outlet Length: 8.68 inches
• Media: Air/Liquid
• Nominal Size: 3 inches
• Orifice Size: 3 inches
• Port Type: Full
• Pressure Rating: 200 psi WOG
• Series: 3700V
• Softgoods Material: Buna-N/PTFE
• Temperature Rating: 200 degrees Fahrenheit
• Top to Inlet Center: 5.59 inches
• Trim Material: PTFE/Stainless Steel
