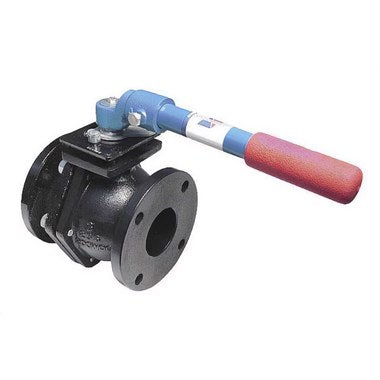

American Valve 37006 3700 Series 6 in. Cast Iron Full Port Flanged 125# Ball Valve

Product Description

The American Valve 37006 is a six-inch cast iron full port flanged ball valve designed for various applications. It includes features that allow for efficient operation in liquid, air, and backflow scenarios. The valve is suitable for high pressure and temperature environments, marked to meet NSF/ANSI standards for safe drinking water.

• Cast iron construction ensures durability
• Class VI shutoff performance preventing leakage
• Compatible with multiple media types including water

Product Highlights

This valve provides a zero-leak rate in closed position and low torque for easy handling. It also allows for venting downstream with a tapped and plugged boss.

Product Information

Standard Information

• Brand: American Valve
• MPN: 37006

Technical Specifications

• Material: Cast Iron
• Nominal Size: 6 inches
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees Fahrenheit
• Length (Inlet to Outlet): 10-1/2 inches
• Top to Inlet Center: 8.31 inches
• Port Type: Full
• Softgoods Material: Virgin PTFE/Nitrile Rubber
• Trim Material: Stainless Steel Stem and PTFE Seat
