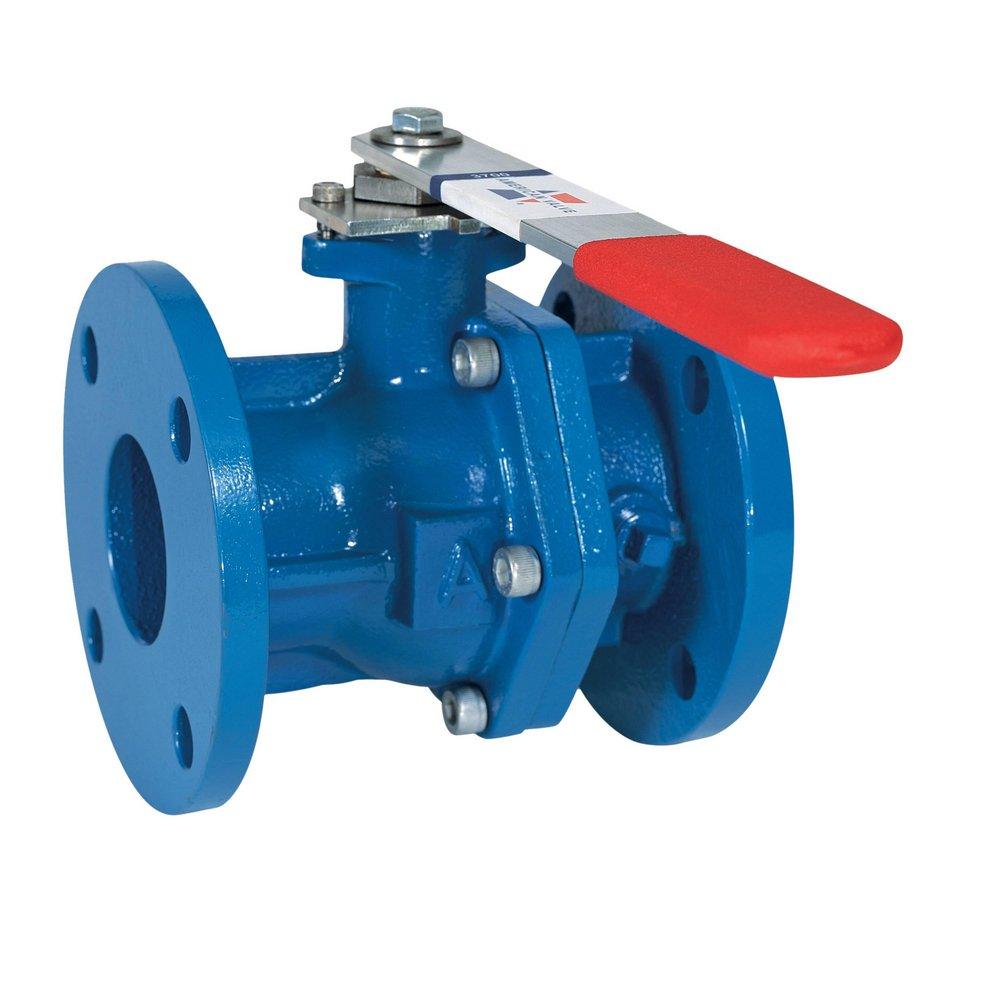

American Valve 37004 3700 Series 4 in. Cast Iron Full Port Flanged 125# Ball Valve

Product Description

The American Valve 37004 is a four-inch cast iron full port flanged ball valve. This model features a lead-free design and meets NSF/ANSI standards for safety. It is suitable for various applications, including water systems and backflow prevention devices. The valve has a pressure rating of two hundred psi and can handle temperatures up to two hundred degrees Fahrenheit.

• Flanged connection for easy installation
• Full port design for maximum flow capacity
• Lead-free construction for safety and compliance

Product Highlights

This valve is engineered for low torque operation and offers a class VI positive shutoff. The tapped and plugged boss allows for venting downstream or connection to a test port, making it versatile for both installation and maintenance.

Product Information

Standard Information

• Brand: American Valve
• MPN: 37004

Technical Specifications

• Ball Material: Cast Iron
• Body Material: Cast Iron
• Nominal Size: 4 inches
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees Fahrenheit
• Inlet to Outlet Length: 9 inches
• Trim Material: Stainless Steel Stem and PTFE Seat
• Softgoods Material: Virgin PTFE/Nitrile Rubber
