American Valve 37003 3700 Series 3 in Cast Iron Full Port Flanged 125# Ball Valve

Product Description

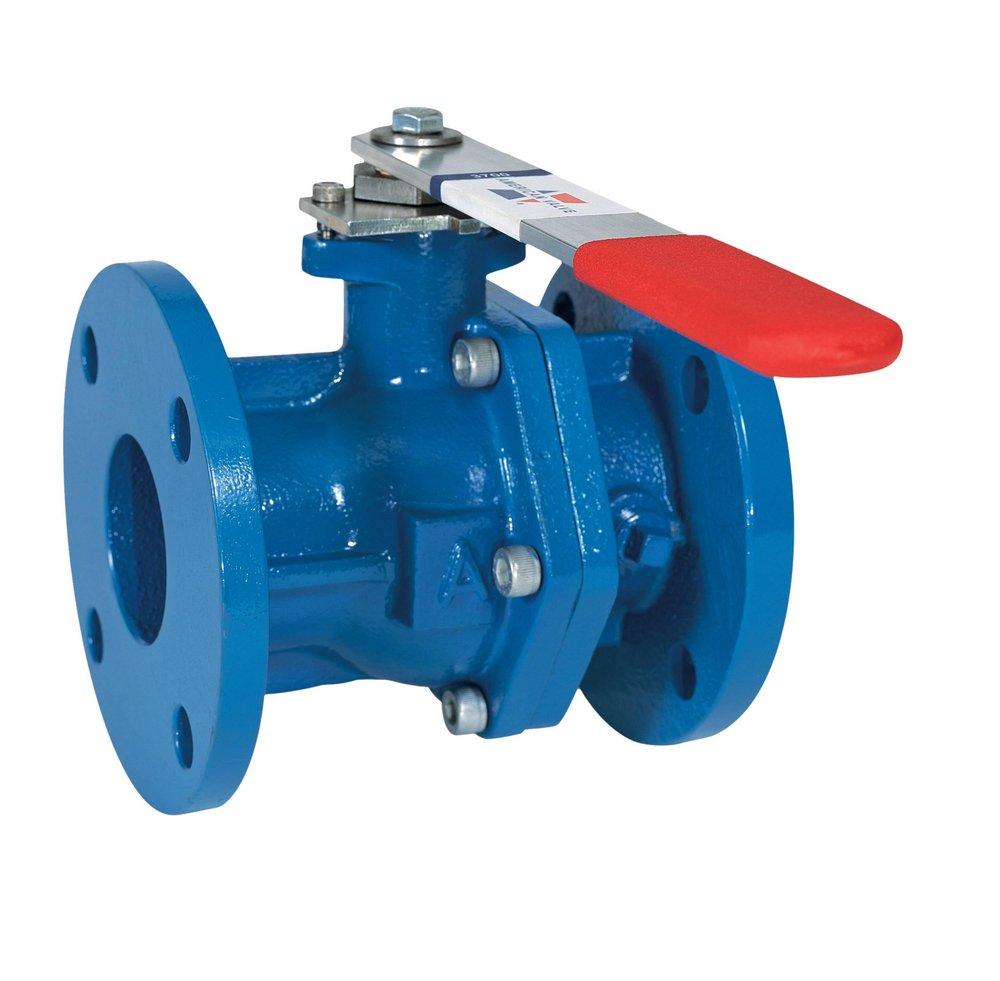

The American Valve 37003 is a three-inch cast iron full port flanged ball valve. It is designed for a wide range of applications, including liquid, air, and backflow prevention. This valve is constructed with a solid PFA fused ball and certified to meet NSF/ANSI 61 and NSF/ANSI 372 standards, ensuring it is lead-free. It allows for venting downstream using the tapped and plugged boss feature, making it suitable for testing backflow preventers.

• Designed for easy operation with zero flow obstruction.
• Compatible with flanged gate and plug valves.
• Meets rigorous standards for safety and performance.

Product Highlights

This valve provides a reliable solution for controlling fluid flow with a Class VI positive shutoff and low torque operation. It is ideal for applications where purity and safety are critical.

Product Information

Standard Information

• Brand: American Valve
• MPN: 37003

Technical Specifications

• Ball Material: Cast Iron
• Body Material: Cast Iron
• End Style: Flanged
• Inlet to Outlet Length: 8 inches
• Media: Water
• Nominal Size: 3 inches
• Port Type: Full
• Pressure Rating: 200 psi
• Series: 3700
• Softgoods Material: Virgin PTFE/Nitrile Rubber
• Temperature Rating: 200 degrees F
• Top to Inlet Center: 5.59 inches
• Trim Material: Stainless Steel Stem and PTFE Seat
• Manufacturer: American Valve
