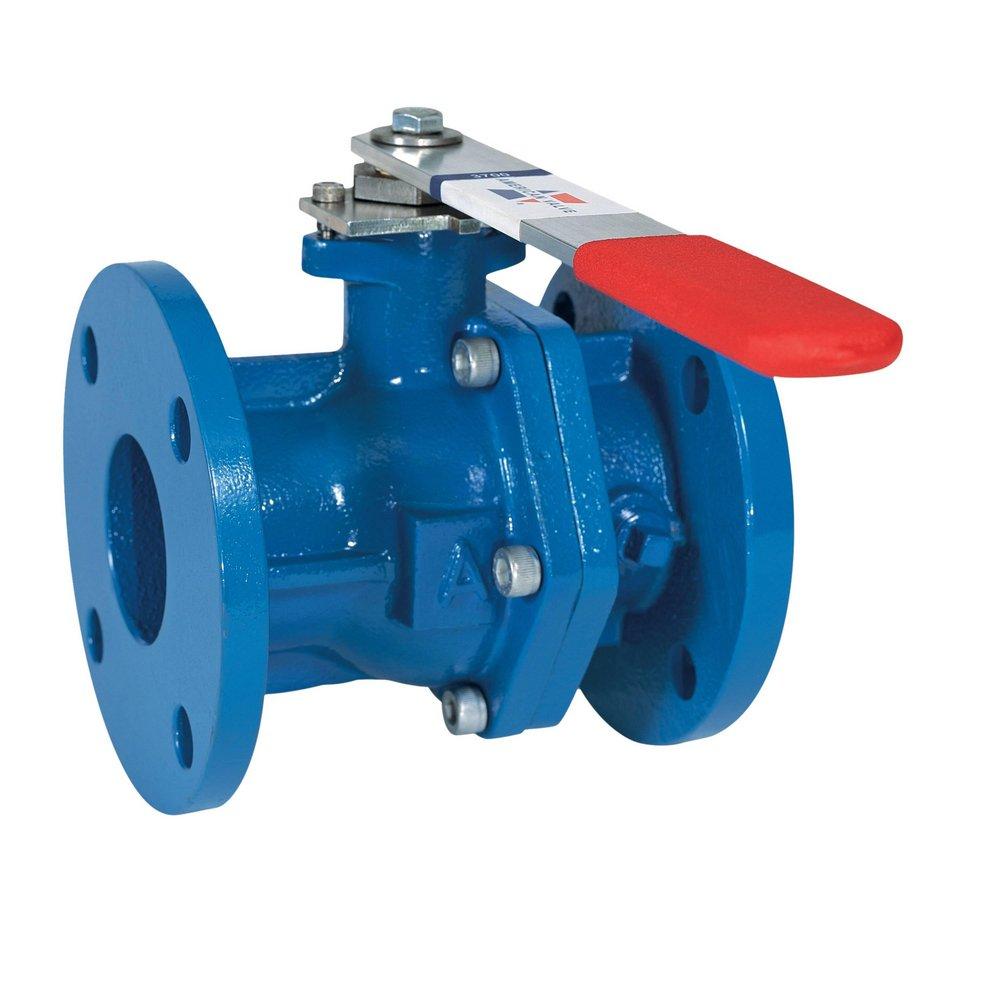

American Valve 370021/2 3700 Series 2-1/2 in. Cast Iron Full Port Flanged 125# Ball Valve

Product Description

The American Valve 370021/2 is a 2-1/2 inch cast iron full port flanged ball valve designed for reliability in various applications. This valve is rated for 200 psi WOG and can operate in temperatures up to 200 degrees Fahrenheit.

• Full port design for maximum flow
• Lead-free construction
• Compatible with multiple media types including air and liquid

Product Highlights

This ball valve features a flanged end style and a stainless steel trim for added durability. It is suitable for backflow prevention devices and can be utilized in potable water applications.

Product Information

Standard Information

• Brand: American Valve
• MPN: 370021/2

Technical Specifications

• Nominal Size: 2-1/2 inches
• Body Material: Cast Iron
• Ball Material: Cast Iron
• Pressure Rating: 200 psi WOG
• Temperature Rating: 200 degrees Fahrenheit
• Orifice Size: 7 inches
• Inlet to Outlet Length: 7-1/2 inches
• Top to Inlet Center: 5.22 inches
• Softgoods Material: Buna-N
• Trim Material: Stainless Steel
