American Valve 10075888 ProPress 2965 Bronze Union 1 in Press x MPT

Product Description

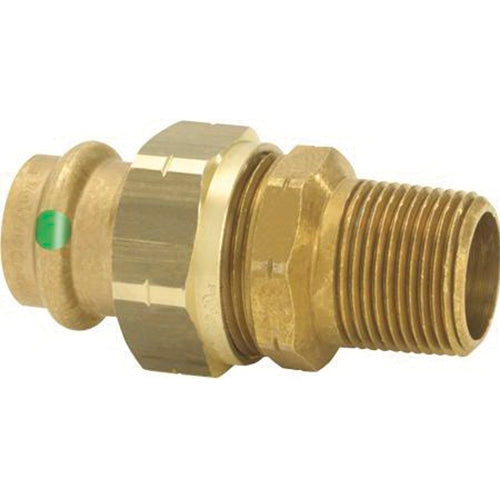

The American Valve 10075888 ProPress 2965 Bronze Union is a reliable fitting that connects two pipes efficiently. It features a one-inch connection size and uses the press and MPT connection types. This union is designed for applications involving potable water, hydronic heating, and compressed air systems.

• Zero-lead material for safe usage
• Smart connect technology for easy installation
• Certified for multiple standards ensuring reliability

Product Highlights

Works in a variety of applications, this union is crafted with a focus on safety and efficiency.

Product Information

Standard Information

• Brand: American Valve
• Part Number: 8733-4.1

Technical Specifications

• Connection Size: 1 in
• Connection Type: Press x MPT
• Item Name: Union
• Length: 3.64 in
• Material: Bronze
• Model: 2965
• Pressure Rating: 200 psi
• Sub Brand: ProPress
• Temperature Rating: 0 - 250 deg F
• Applications: For potable water, hydronic heating, chilled water, compressed air, non-medical gases, fire sprinkler, low pressure steam and vacuum
• Standards/Certifications: NSF 61G certified, IAPMO PS117, UL 213, FM class 1920, ICC LC 1002, CSA MSE-13, ABS certified, DVGW, LR, DNV, RINA, BV, KIWA listed, ICC, PHCC, NFPA 13, 13D and 13R, ASME B16.51, US Coast Guard approved
