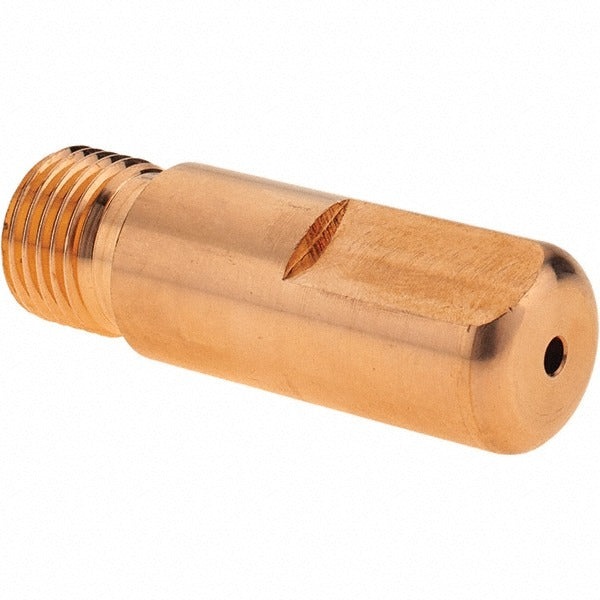

American Torch Tip S10125-3/32 Submerged Arc Contact Tip

Product Description

The AMERICAN TORCH TIP S10125-3/32 is a submerged arc contact tip designed for MIG and submerged arc welding applications. The contact tip transfers welding current to the wire electrode as it feeds through the torch, maintaining consistent electrical contact and arc stability. Built to a 3/32 inch bore diameter, this tip is suited for matching wire diameter applications where precise current transfer and weld quality are critical. Welding professionals and fabricators install this component as a wear item during routine torch maintenance.

This contact tip is used in submerged arc welding (SAW) setups as well as compatible MIG torch configurations. It is a single-piece consumable replaced during scheduled maintenance or when arc performance degrades due to tip wear, spatter buildup, or bore elongation. Applications span industrial fabrication, structural welding, and heavy manufacturing environments where submerged arc processes are standard.

Key Features

• 3/32 inch bore diameter for precise wire-to-tip fit and consistent current transfer
• Submerged arc contact tip design built for SAW torch compatibility
• Sold as an individual piece, allowing single-unit replacement as needed
• Lightweight construction at 0.05 pounds for easy handling during torch servicing

Compatibility

Designed as an OEM-style replacement contact tip for submerged arc and compatible MIG welding torches accepting a 3/32 inch bore contact tip.

Installation Notes

Contact tips are installed and serviced by qualified welding technicians or fabricators. Always de-energize and allow the torch to cool fully before removing or replacing the contact tip. Use the appropriate tip wrench to avoid cross-threading or over-torquing the tip seat. Inspect the nozzle and insulator for wear at the same time to maintain full torch assembly performance.
