American Standard Water Heater EN30T6

Product Description

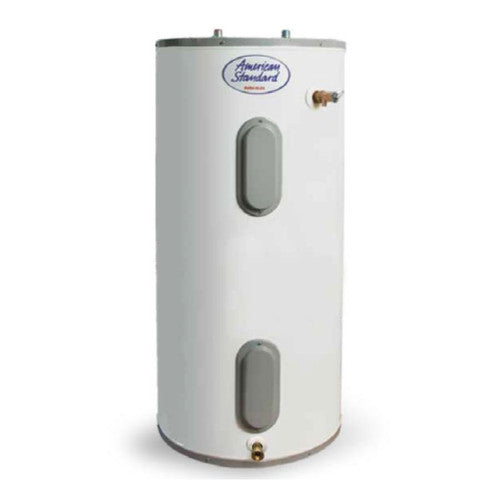

The American Standard EN30T6 is a 30-gallon electric water heater designed for residential heating needs. It features dual screw-in heating elements that enhance heat transfer directly to the water, allowing efficient heating. This unit is built with a heavy gauge steel tank that is glass-lined for corrosion protection. A magnesium anode rod is included to further guard against rust and wear.

• Dual heating elements for direct heat transfer.
• Glass-lined tank provides excellent corrosion protection.
• Relocatable temperature and pressure relief valve included.

Product Highlights

This water heater is foam insulated and UL 174 listed, ensuring safety and efficiency in operation.

Product Information

Standard Information

• Energy Factor: .92
• Jacket Diameter: 20 1/4 inches

Technical Specifications

• Wattage: Standard of 4500 Watts, Maximum of 6000 Watts
• Nominal Gallons: 30
• First Hour Rating: 43
• R Factor: 24
• GPH Rec @ 90 degrees Rise: 21
• Water Connections: 51
• Top of Heater: 49 3/8 inches
• Side Temperature and Pressure Release Valve: 42 inches
• Water Spread: 8 inches
