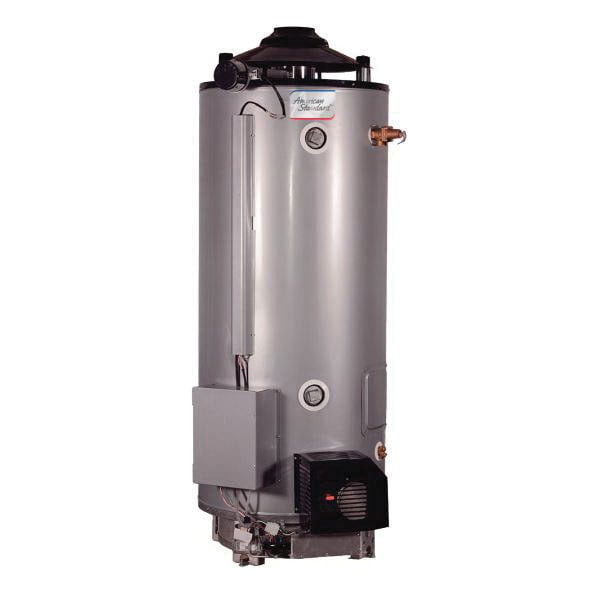

American Standard ULN100-270-AS Gas Water Heater 100 gal 270000 BTU/hr

Product Description

The AMERICAN STANDARD ULN100-270-AS gas water heater is a universal replacement for all brands. It features a Dura-Glass enamel, heavy-duty multi-flue steel tank with four anode rods, automatic motorized flue damper, and an electronic direct spark ignition system. It also has fully adjustable controls and a turbulence-inducing cold water inlet dip tube.

• Dura-Glass enamel, heavy duty multi-flue steel tank with four anode rods
• Automatic motorized flue damper
• Electronic direct spark ignition system

Product Highlights

This heavy-duty gas water heater ensures a long tank life and meets current industry standards. Ideal for commercial applications.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: ULN100-270-AS

Technical Specifications

• MPN: ULN 100-270 AS
• Manufacturers: American Standard Water Heaters
• Fuel Type: Natural Gas
• Gas Connection: 3/4 in IPS
• Tank Size: 100 gal
• Ignition Type: Spark
• Vent Size: 6 in
• Recovery: 264 gph at 100 deg F Rise
• Energy Efficient: 80.4 %
• Water Connection: 1-1/2 in
• Temperature: 180 deg F
• Ultra Low NOx: Yes
• ASME Yes/No: No
• Material: Steel
• OAH: 72-5/8 in
• Tank Capacity Range: 98 to 100 gal
• Type: Tall
• Heating Capacity: 270 Kbtu/hr
• Vent Type: Atmospheric
• Series: ULN
• Energy Efficiency: 80 %
• Recovery Rate: 262 gph at 100 deg F Rise
• Temperature Rating: 180 deg F
• Brand: American Standard
• ANSI Z21.10.3: ANSI Z21.10.3
• ASHRAE 90.1-1999: ASHRAE 90.1-1999
• CEC Certified: CEC Certified
• ETL Listed: ETL Listed
• NSF/ANSI 5: NSF/ANSI 5
• Commercial Applications: Commercial Applications
• Input Power: 270000 BTU
• Thermal Efficiency: 80.35 %
• Industry Standards: C.E.C. Listed
• Exterior Dimension A: 72-5/8 in
• Exterior Dimension B: 30-1/4 in
• Exterior Dimension C: 65-5/8 in
• Top Pipe Size: 1-1/2 in
• Rear and Front Water Connection: 2 in
• Height to Top Water I.P.S. Connection D: 67-5/8 in
• Top Spread Water I.P.S. Connection E: 23-5/8 in
• Height to Rear and Front Hot Water I.P.S. Connection F: 57-1/2 in
• Height to Rear and Front Cold Water I.P.S. Connection G: 20 in
• Gas I.P.S. Connection Height H: 4 in
• Gas I.P.S. Connection Size: 3/4 in
• Height to T and P Opening J: 58-7/8 in
• T and P Opening: 3/4 in
• Width with Blower K: 22 in
• Width with Blower L: 6.75 in
• Width with Blower M: 37.25 in
• One Hour Recovery at 100 baF Temperature Rise: 264 gal/h
• Maximum Hot Water Delivery (1 Hour): 334 L
• Maximum Hot Water Delivery (2 Hours): 598 L
• Maximum Hot Water Delivery (3 Hours): 862 L
• Maximum Hot Water Delivery Recovery at 100 baF Temperature Rise: 4.4 g/min
• Storage Capacity: 100 U.S. gal
• Recovery at 40 baF Temperature Rise: 650 gal/h
• Recovery at 50 baF Temperature Rise: 520.2 gal/h
• Recovery at 60 baF Temperature Rise: 433.3 gal/h
• Recovery at 70 baF Temperature Rise: 371.4 gal/h
• Recovery at 80 baF Temperature Rise: 325 gal/h
• Recovery at 90 baF Temperature Rise: 288.9 gal/h
• Recovery at 110 baF Temperature Rise: 236.3 gal/h
• Recovery at 120 baF Temperature Rise: 216.6 gal/h
• Recovery at 130 baF Temperature Rise: 200 gal/h
• Recovery at 140 baF Temperature Rise: 185.7 gal/h
