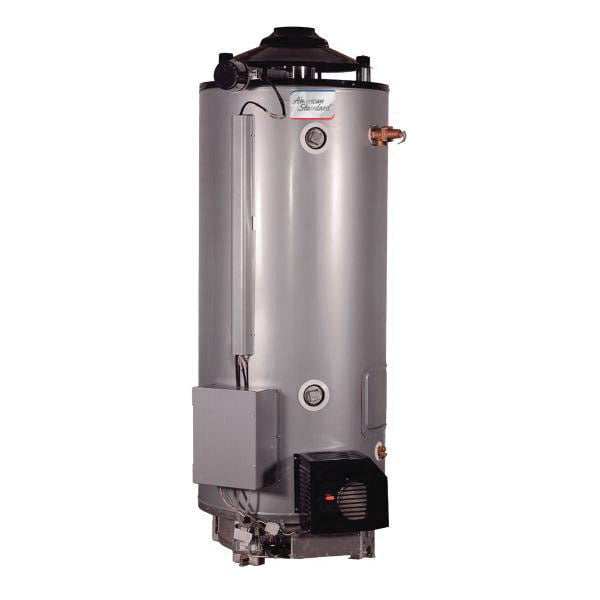

American Standard ULN100-199-AS Heavy Duty Gas Water Heater 100 gal 199000 Btu/hr

Product Description

The AMERICAN STANDARD ULN100-199-AS commercial gas water heaters are universal replacements for all brands. Features a Dura-Glass enamel, heavy-duty multi-flue steel tank with four anode rods, automatic motorized flue damper, and electronic direct spark ignition system. Offers fully adjustable controls and a turbulence-inducing cold water inlet dip tube.

• Reduced installation costs
• Dura-Glass enamel, heavy duty multi-flue steel tank with four anode rods
• Automatic motorized flue damper

Product Highlights

Universal replacement for all brands, featuring a durable tank, automatic damper, and electronic ignition.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: ULN100-199-AS

Technical Specifications

• Fuel Type: Natural Gas
• Gas Connection: 3/4 in IPS
• Tank Capacity: 100 gal
• Ignition Type: Spark
• Vent Size: 6 in
• Recovery Rate: 197.1 gph at 100 deg F Rise
• Energy Efficiency: 81.4 %
• Water Connection: 1-1/2 in IPS
• Temperature Rating: 180 deg F
• Ultra Low NOx: Yes
• ASME Yes/No: No
• Material: Steel
• Overall Height: 73-1/4 in
• Input Power: 199000 BTU
• Thermal Efficiency: 81.39 %
• Industry Standards: C.E.C. Listed
• Exterior Dimension A: 73.25 in
• Exterior Dimension B: 30-1/4 in
• Exterior Dimension C: 65-5/8 in
• Top Pipe Size: 1-1/2 in
• Rear and Front Water Connection: 2 in
• Height to Top Water I.P.S. Connection D: 67-5/8 in
• Top Spread Water I.P.S. Connection E: 23-5/8 in
• Height to Rear and Front Hot Water I.P.S. Connection F: 57-1/2 in
• Height to Rear and Front Cold Water I.P.S. Connection G: 20 in
• Gas I.P.S. Connection Height H: 4 in
• Gas I.P.S. Connection Size: 3/4 in
• Height to T and P Opening J: 58-7/8 in
• T and P Opening: 3/4 in
• Width with Blower K: 22 in
• Width with Blower L: 6.75 in
• Width with Blower M: 37.25 in
• One Hour Recovery at 100 00baF Temperature Rise: 197.1 gal/h
• Maximum Hot Water Delivery (1 Hour): 266 L
• Maximum Hot Water Delivery (2 Hours): 462 L
• Maximum Hot Water Delivery (3 Hours): 658 L
• Maximum Hot Water Delivery Recovery at 100 00baF Temperature Rise: 3.3 g/min
• Storage Capacity: 100 U.S. gal
• Recovery at 40 00baF Temperature Rise: 485.6 gal/h
• Recovery at 50 00baF Temperature Rise: 388.5 gal/h
• Recovery at 60 00baF Temperature Rise: 323.7 gal/h
• Recovery at 70 00baF Temperature Rise: 277.5 gal/h
• Recovery at 80 00baF Temperature Rise: 242.8 gal/h
• Recovery at 90 00baF Temperature Rise: 215.8 gal/h
• Recovery at 110 00baF Temperature Rise: 176.6 gal/h
• Recovery at 120 00baF Temperature Rise: 161.8 gal/h
• Recovery at 130 00baF Temperature Rise: 149.4 gal/h
• Recovery at 140 00baF Temperature Rise: 138.7 gal/h
• Tank Capacity Range: 98 to 100 gal
• Type: Tall
• Heating Capacity: 199 Kbtu/hr
• Vent Type: Atmospheric
• Series: ULN
• Dimensions: 73-1/4 in OAH
• Manufacturer: American Standard Water Heaters
• Manufacturer Part Number: ULN 100-199 AS
• ANSI Z21.10.3: ANSI Z21.10.3
• ASHRAE 90.1-1999: ASHRAE 90.1-1999
• CEC Certified: CEC Certified
• ETL Listed: ETL Listed
• NSF/ANSI 5: NSF/ANSI 5
• Commercial Applications: Commercial Applications
