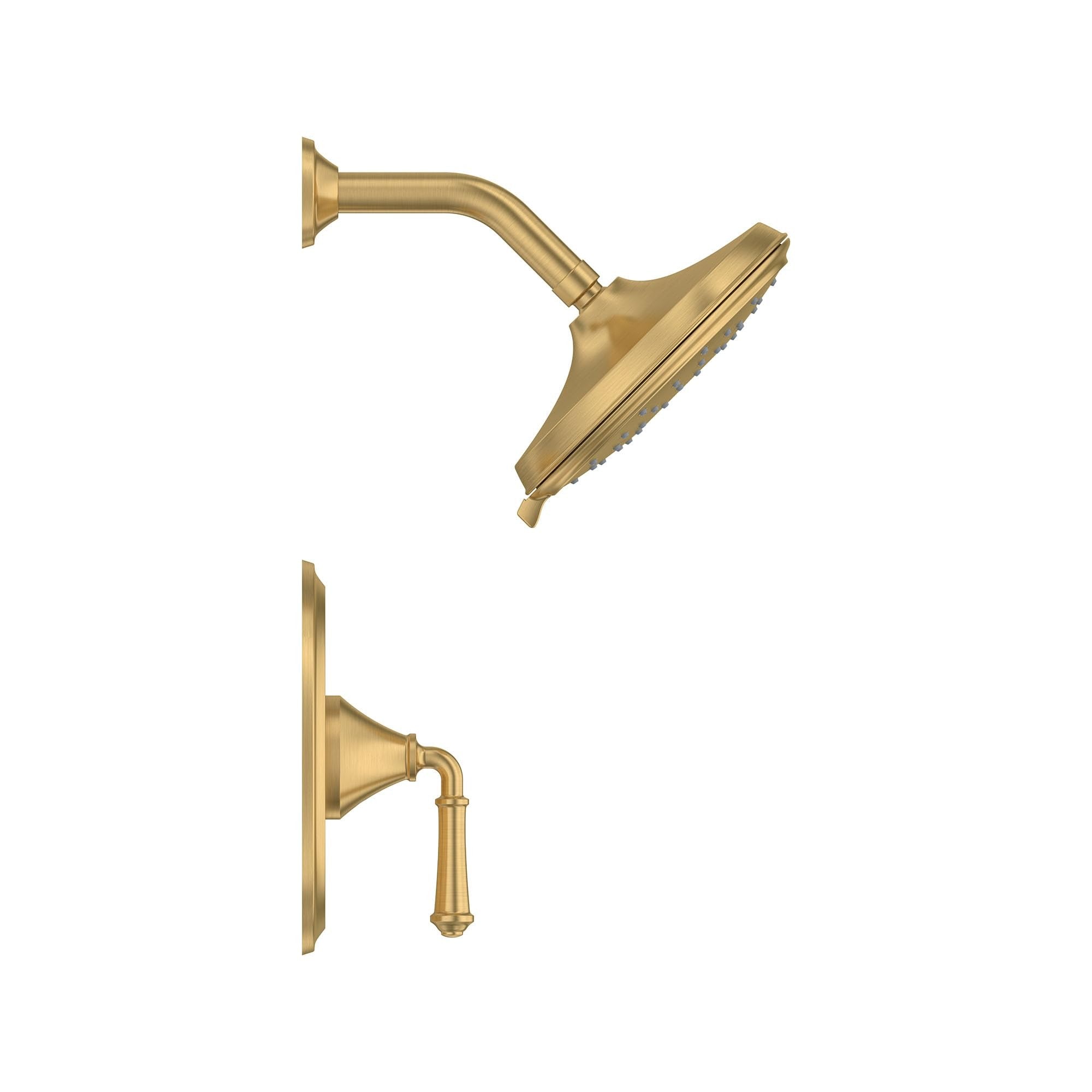

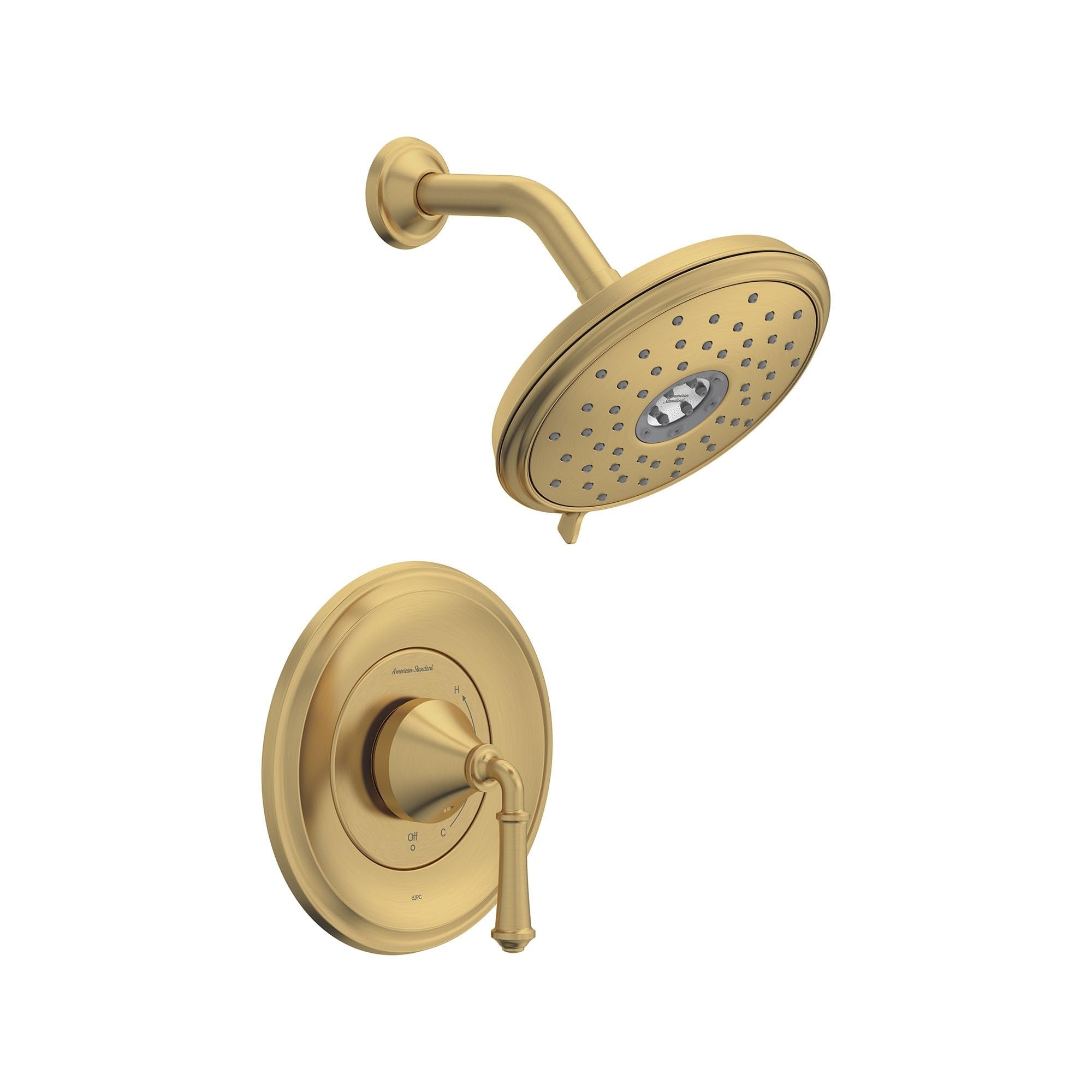

American Standard TU052507.GN0 Delancey Shower Trim Kit

Product Description

The AMERICAN STANDARD TU052507.GN0 is a shower trim kit for use with a compatible pressure-balance valve body. It features a double ceramic pressure-balance cartridge that combines a ceramic disc mixing valve and a ceramic balancing spool in a single one-piece unit. This construction delivers consistent outlet temperature even when supply pressures shift, while integrated check valves prevent cross-flow between hot and cold lines. The showerhead delivers 1.8 GPM across 4 spray settings, reducing water consumption by approximately 28 percent compared to standard showerheads. Finished in Brushed Gold, the trim is engineered to resist tarnish and scratches. Licensed plumbers install this trim as part of a rough-in valve system in residential shower applications.

This trim kit is suited for residential shower installations where a pressure-balance rough-in valve is already in place or being installed concurrently. The 1.8 GPM flow rate meets low-flow code requirements common in water-restricted jurisdictions. The Brushed Gold finish coordinates with other Delancey series fixtures for contractors completing full bathroom build-outs or remodels. The one-piece cartridge design streamlines both initial installation and future service calls.

Key Features

• Double ceramic pressure-balance cartridge maintains constant outlet temperature during supply pressure fluctuations
• Ceramic disc mixing valve provides drip-free, smooth handle operation over the life of the fixture
• Ceramic balancing spool resists mineral deposits and harsh water conditions
• Integrated check valves eliminate cross-flow between hot and cold supply lines
• 1.8 GPM flow rate with 4 spray settings reduces water use by approximately 28 percent versus standard showerheads
• Tarnish- and scratch-resistant Brushed Gold finish

Compatibility

Designed as an OEM-style trim kit for use with a compatible pressure-balance shower valve rough-in body. Consult the valve body specifications to confirm trim compatibility before installation.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes. Shut off the water supply to the shower valve and depressurize the lines before beginning trim installation. Verify that the rough-in valve body is fully installed and pressure-tested before mounting the trim components. Do not overtighten connections to brass or metal fittings, as this can damage sealing surfaces.
